Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

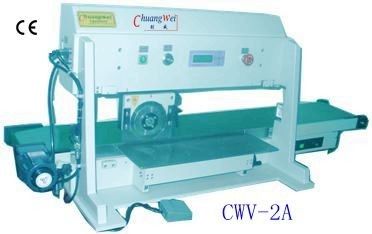

Pcb depaneling Conveyor Belt Double-sided , Pcb Cutting Machine

Pcb depaneling Conveyor Belt Double-sided , Pcb Cutting Machine
Pcb depaneling Conveyor Belt Double-sided , Pcb Cutting Machine Pcb depaneling Conveyor Belt Double-sided , Pcb Cutting Machine

Large Image :  Pcb depaneling Conveyor Belt Double-sided , Pcb Cutting Machine

Product Details:

Place of Origin: China
Brand Name: Chuangwei PCB separator
Certification: CE GlobalMarket
Model Number: CWV-2A PCB separator

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywooden Case will be the first consideration
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union , cash , paypal
Supply Ability: 1000 Sets/Year
Detailed Product Description
Delievery Time: 3 -5 Days After Receive The Payment System: Automatic Type With Conveyor Belt
Name: Pcb Separator With Convey Feeding Cutter MOQ: 1 Set
Use: Cutting Printed Circle Board And Alum Board... Warranty: Free For 1 Year
High Light:

PCB depaneling

,

PCB separate



Pcb depaneling Conveyor Belt Double-sided , Pcb Cutting Machine Advantages:


After soldering the plate of connecting pieces, it often hurts lines or breaks the electronic parts when breaking . This machine cuts with feed mode to reduce stress drastically , prevent the solder joint and parts from cracking and improve the productivity and quality.
With circle knife above and anvil blade below , when the board flow to the anvil blade , shift the switch , and the anvil blade move laterally tto he set point , then the PCB board is cut off with smooth incision and no burrs .
The forward and stop point can be set according to the plate length when feeding , the stop point for artificial setting .
The tailgate depth range : unlimited. The largest plate cutting width : unlimited , the maximum cutting length : 500mm , the plate thickness : 0.2-5.0mm . The  thickness between V groove : 0.25-2.0mm .
The upper and lower knives is made of imported high-speed steel material , which are durable and can be regrinded .
The machine can be in supporting use of a complete set of conveyor belt , which is convenient for the cut PCB to be send out automatically .
The feed distance of the knife wheel is from 0 to 500mm ( the tool length can be customized ) . The height of the knife wheel is fine-tuning from 0 to 2mm so that it is suitable for PCB of various kinds of thickness and the depth of V-CUT  groove . The height of work station is regulable from 0 to 50mm .



Specifications


Size : 880mm X 460mm X 560mm
The Longest Minimize : 460mm
Minimize Speed :  100/200/300/500mm/s
Minimize thickness :  0.6-3.5mm
Machine Weight :185kg



Why Choose us



1. CWV-2A Pcb depanelizer original manufacturers, price concessions

 2. Promise day technical support services

 3. Limit the handling of complaints, half an hour back to customers

 4. Depanel Experts, the provision of professional PCB sub-programme

 5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
