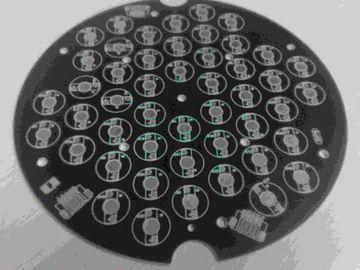

Hasl Aluminum Base Led Pcb Boards 1.6mm Thickness , 0.5 - 4 oz Copper Thickness

Hasl Aluminum Base Led Pcb Boards 1.6mm Thickness , 0.5 - 4 oz Copper Thickness
Hasl Aluminum Base Led Pcb Boards 1.6mm Thickness , 0.5 - 4 oz Copper Thickness

Large Image :  Hasl Aluminum Base Led Pcb Boards 1.6mm Thickness , 0.5 - 4 oz Copper Thickness

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: Aluminum Copper Thickness: 0.5-4oz
Board Thickness: 1.6mm Min. Line Spacing: 0.1mm
Min. Line Width: 0.1mm Surface Finishing: Hasl
Min. Hole Diameter: 0.1mm
High Light:

led light pcb board

,

high power led pcb

Hasl Aluminum Base Led Pcb Boards 1.6mm Thickness , 0.5 - 4 oz Copper Thickness



Specifications


1.Aluminum base pcb board,
2.Led pcb board manufacturer
3.UL,SGS,Rohs Certificated
4.High quality with competitive price




Our PCB board manufacture and PCB assembly service:


o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing,

PCB assembly, test, packing and PCB delivery



Technical Specification For PCB



Number of Layer 1,2,4 or 6,upto 18 layer
Order Quantity 1 to 50,000
Board Shape Retangular,round,slots,cutouts,complex,irregular
Board Type Rigid, Flexible, Rigid-flexible
Board Material FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting Shear,V-score,Tab-routed
Board Thickness 0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight 1.0, 1.5, 2.0 oz
Solder Mask Double-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width 0.006'' or 0.15mm
Max Board Dimensions 20 inch*20inch or 500mm*500mm
Min Trace/Gap 0.10mm, or 4mils
Min Drill Hole Diameter 0.01'',0.25mm, or 10mils
Surface Finish HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance ±10%
Copper Weight Tolerance ± 0.25 oz
Minimal Slot Width 0.12'', 3.0mm, or 120mils
V-Score Depth 20-25% of board thickness
Design File Formate Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG



PCB Assembly Capabilities



Quantity Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of Assembly SMT,Thru-hole
Solder Type Water Soluble Solder Paste,Leaded and Lead-Free
Components

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Bare Board Size

Smallest:0.25*0.25 inches

Largest:20*20 inches

File Formate

Bill of Materials

Gerber files

Pick-N-Place file

Types of Service Turn-key,partial turn-key or consignment
Component packaging Cut Tape,Tube,Reels,Loose Parts
Turn Time Same day service to 15 days service
Testing Flying Probe Test,X-ray Inspection AOI Test
PCB assembly process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing



Detailed Terms for Pcb Assembly



Technical requirement for pcb&pcb assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
----ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
----PCB Assembly With UL,CE,FCC,Rohs Approval
----Nitrogen gas reflow soldering technology for SMT.
----High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.



Quote requirement for pcb&pcb assembly:
----Gerber file and Bom list
----Clear pics of pcba or pcba sample for us
----Test method for PCBA
