Cell Phone PCB

  • High Precision Cell Phone PCB suppliers



Introduction


We can make single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes




Main Base Material


FR-1, FR-2, FR-4, CEM-1, CEM-3, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
We choose the best base material suppliers as our partners, such as KB and Shengyi to guarantee our products with high quality.




Surface Finish


Hot air Lev p lead free HASL, immersion gold/silver/tin, plating gold, OSP




Board Thickness


Inner core thickness 0.15-1.5mm, finished board thickness 0.20-3mm





Service



*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.

*- Suggest best quality replacement with lower price.

*- Engineering support for test and provide suggestions for mass production.

*- Suggest best shipment method.

*- Sign NDA to keep your design safe.

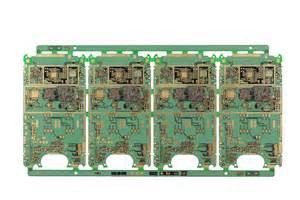

Cell phone circuit board HDI 4 layer PCB

Cell phone circuit board HDI 4 layer PCB
Cell phone circuit board HDI 4 layer PCB

Large Image :  Cell phone circuit board HDI 4 layer PCB

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Number Of Layers: 4-Layer Base Material: FR4
Copper Thickness: 1oz Board Thickness: 1.5mm
Min. Hole Size: 0.10mm Min. Line Width: 3.0mil
Min. Line Spacing: 3.0mil Surface Finishing: ENIG+OSP
Solder Mask: Green,blue,red,black,white,yellow
High Light:

mobile phone pcb

,

mobile phone circuit board

Specifications


Cell phone circuit board HDI 4 layer PCB
1.Over 10 years in PCB filed
2.Top quality with competitive price
3.ISO,UL,RoHS




We can produce single-sided printed board(ssb), double-sided printed board(dsb), multilayer PCBs, HDI PCBs, FPC and PCBA according to your provided Data Files or your sample.



Introduction of our craft capability :



Specifications

Details

Material Type

FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon*,Teflon,Taconic, Rogers*, Polyimide*, Kapton,Dupont

Material Thickness ( in inches)

0.062”, 0.080”, 0.093”, 0.125”, 0.220”, 0.047”, 0.031”, 0.020”, 0.005"

Layer count

1 to 28 Layers

Max. Board Size

23.00” x 35.00”(580mm*900mm)

IPC Class

Class II, Class III ,  Class 1

Annular Ring

5 mil/side or Greater (Min. Design)

Finish Plating

Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold,  Other

Copper Weight

0.5OZ-7OZ

Trace/Space Width

 3 Mils or Greater

Drill Clearance

0.1mm(laser drilling)

Plated Slots

0.036 or Greater

Smallest Hole (Finished)

0.1mm or Greater

Gold Fingers

1 to 4 Edge (30 to 50 Micron Gold)

SMD Pitch

0.080” -  0.020” -  0.010”

Soldermask Type

LPI Glossy, LPI-Matte, SR1000

Soldermask Color

Green, Red, Blue, Black, White, Yellow,

Legend Color

White, Yellow, Black, Red, Blue

CNC Route Point

Any

Minimum Route Width

0.031”

Scoring

Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*

Body Gold

HARD*, IMMERSION* (up to 50 MICRON GOLD)

Data File Format

Gerber 274x with embedder aperture

 Fab. Drawing Format

DXF, HPGL, DWG, PDF, Gerber

E.T Testing

Flying Probe, Single Sided, 1up Plate, Clampshell, Net List

Counter Sink / Counter Bore

Availiable up to 0.250 Diameter

Control Impedence

Yes

Blind Vias / Buried Vias

Yes

Peelable Mask

Yes

Carbon

Yes
