HDI PCB Board

  • High Precision HDI PCB Board suppliers
  • High Precision HDI PCB Board suppliers





Material


FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180





Surface Treatment


HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger





Advantage



1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)





Capability:



          -High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

          -Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

          -Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

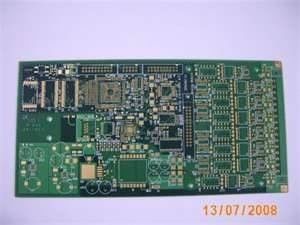

Custom High TG Green Printed CircuitsFR4 LCD HDI PCB Board / 0.2mm to 3.2mm Thickness

Custom High TG Green Printed CircuitsFR4 LCD HDI PCB Board / 0.2mm to 3.2mm Thickness
Custom High TG Green Printed CircuitsFR4 LCD HDI PCB Board / 0.2mm to 3.2mm Thickness

Large Image :  Custom High TG Green Printed CircuitsFR4 LCD HDI PCB Board / 0.2mm to 3.2mm Thickness

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: SGS,ROHS,UL

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

custom circuit board

,

hdi circuit boards

Custom High TG Green Printed CircuitsFR4 LCD HDI PCB Board / 0.2mm to 3.2mm Thickness



Description:



Number of Layers

 HDI PCB BOARD

 Base Material

 FR4

 Copper Thickness

 0.5OZ to 3 oz

 Board Thickness

 0.2mm to 3.2mm

 Min. Hole Size

 0.2mm

 Min. Line Width

 0.075mm

 Min. Line Spacing

 0.075mm

 Surface Finishing

 Lead- free HASL

 Solder Mask color

 green/white/black/red

 Payment & Shipping Terms:



 Price:

 Get Latest Price

 Packaging Details:

 Inside : vacuum packing / Outside: Paper Carton

 Delivery Time:

 5 to 6 days

 Payment Terms:

 L/C,T/T,Western Union

 Supply Ability:

 5000 Square Meter/Square Meters per Month





Feature:


1. Our PCBs are used for wide range of electronic products
Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,Telecomunication ,LED, etc.
2. Provides OEM services to all sorts of printed circuit board assembly as well as Electronic encased products
3. Solder mask color: Green / Yellow / Black / White / Red / Blue.
4. Board material type: FR-4, Aluminium-backed board, Halogen-free, Lead-free compatible, High-Tg, High CTI, CEM-1, CEM-3, Rogers and more
5. Compound material lamination: 2 to 12 layers
6.Surface Finished type: HASL, Flash golds, ENIG,OSP(lead freecompatible), Carbon ink, Peelable S/M, HASL(lead free), Immersion silver/tin, Gold finger plating, ENIG+gold finger plating, Immersion Silver+gold finger plating
