LED PCB Boards

  • High Precision LED PCB Boards suppliers
  • High Precision LED PCB Boards suppliers





Testing Procedures For PCB Board



 ---We perform multiple quality assuring procedures before shipping out any PCB board. These include:

 * Visual Inspection

 * Flying probe

 * Bed of nails

·* Impedance control

·* Solder-ability detection

 * Digital metallograghic microscope

·*AOI (Automated Optical Inspection)





Detailed Terms for PCB Manufacturing



---Technical requirement for pcb assembly:

 * Professional Surface-mounting and Through-hole soldering Technology

 * Various sizes like 1206,0805,0603 components SMT technology

 * ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

 * PCB Assembly With UL,CE,FCC,Rohs Approval

 * Nitrogen gas reflow soldering technology for SMT.

 * High Standard SMT&Solder Assembly Line

 * High density interconnected board placement technology capacity.





Surface Treatment



Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger





Other Service:



 A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.



 B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .



Environment friendly ROHS REACH 1 - 28 layers CEM - 3 high standard LED PCB board

Environment friendly ROHS REACH 1 - 28 layers CEM - 3 high standard LED PCB board
Environment friendly ROHS REACH 1 - 28 layers CEM - 3 high standard LED PCB board

Large Image :  Environment friendly ROHS REACH 1 - 28 layers CEM - 3 high standard LED PCB board

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Model Number: LED05
Number of Layers: 2L
Base Material: Al
Copper Thickness: 2oz
Board Thickness: 1.6mm
Min. Hole Size: 0.3mm
Min. Line Width: 0.2mm
Min. Line Spacing: 0.2mm
Surface Finishing: HASL
solder mask color: white

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

led lighting board

,

high power led pcb

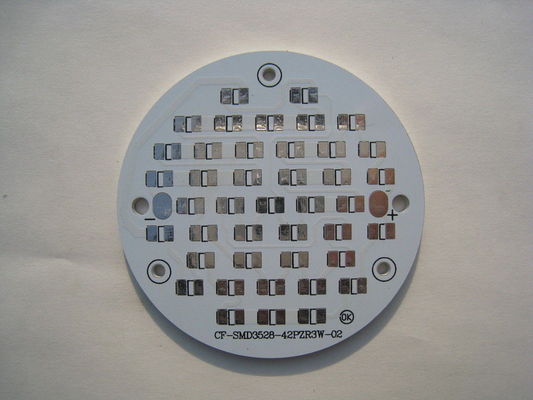

Environment friendly ROHS REACH 1 - 28 layers CEM - 3 high standard LED PCB board

LED PCB board
1.Reputable manufacturer
2.Certificate:ISO UL ROHS REACH
3.Environment friendly PCB
4.Timely delivery




LED PCB board

1.Competitive price
2.good after services


Our Production Capability for PCB

  • Layer: 1 to 28 layers
  • Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers,Al
  • Board thickness: 0.21mm to 7.0mm
  • Copper thickness: 0.5 OZ to 7.0 OZ
  • Copper thickness in hole: >25.0 um (>1mil)
  • Size:

- Max. Board Size: 23 × 25 (580mm×900mm)
- Min. Drilled Hole Size: 3mil (0.075mm)
- Min. Line Width: 3mil (0.075mm)
- Min. Line Spacing: 3mil (0.075mm)

  • Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating
  • Solder Mask Color: Green/Yellow/Black/White/Red/Blue
  • Tolerance

- Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05

  • PCB Packing

- Inner packing: Vacuum packing / Plastic bag
- Outer packing: Standard carton packing

  • Certificate: UL, ISO 9001, ISO 14001
  • Special requirements: Buried and blind vias+controlled impedance +BGA
  • Profiling: Punching, Routing, V-CUT, Beveling
  • Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.


Contact us to check out great PCBs and full details, we will reply to you with prices in one working day!

  • OEM services provided
  • Certificate: ROHS, UL, ISO9001-2000, ISO14001
  • Factory direct price
  • Paypal available

Note:if you buy the whole light,tell us which kind of components do you use or send us the components,we help you assemble them,because we have over reflow soldering in factory.
