Service Details:
1) Fast PCB with in 12 hours, 24 hours and 48 hours are available.
2) No MOQ for PCB ,PCBA ,FPC and Alu pcb.
3) Boards are RoHS compliant with UL.
4) Engineers with over 10 years of working experience can offer you professional suggestions.
5) Factory production Capability of 15000 sqm/month.
6) Quality inspection standard: IPC-6012 Class II.
7) Base material: FR4, Hi-tg FR4, Aluminum, High frequency (Rogers, Taconic, F4B, Arlon etc.), PI, PET.
Our Advantages (why us ?):
1) Every board is to IPC Class II or higher standard.
2) All boards are UL approved and made in ISO-9001 certified facilities.
3) 100% tested (flying probe or E-test).
4) PCB Design Rule Check with no extra cost.
5) Impedence control test.
6) Free panelizing.
7) Special price/service package for partners.
8) Professional engineering support. We work with customers closely to ensure the boards are standards compliant.
9) On time delivery.
10) No minimum/maximum order.
11) Worldwide shipping.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
Product Details:
Payment & Shipping Terms:
|
| High Light: | replace hard drive pcb,hard drive pcb replacement |
||
|---|---|---|---|

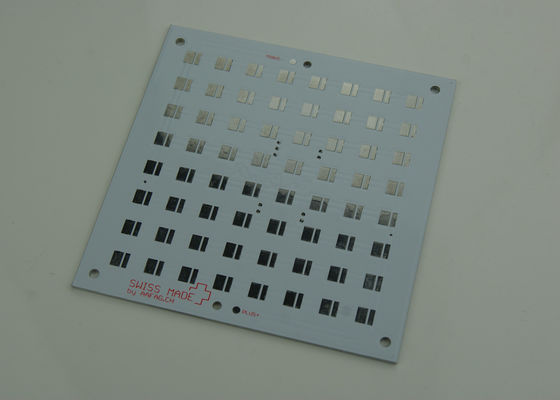

Double sided Metal Core PCB Custom Printed Circuit Board for Heater / Elevator
Double Layers Metal Core PCB
Double layers MCPCB is consisting of two layers of copper conductor, put them on same side of metal core (usually aluminum, copper or iron alloy). The metal base is on the bottom of whole MCPCB, which is different from double sided MCPCB(the two copper layers were put on the each side of metal core respectively), and you can only populate SMD on top side.
Different with Single layer MCPCB, 2 layers MCPCB requires an additional pressing step to laminate the imaged thermal conductive laminate and metal core (also known as metal base) together.
Compared with normal FR4, this sturcture need more technology and experience on laminating of two layers together with metal core.
The processing steps of the MCPCB with the metal base embedded in the PCB are comparatively complex as hole plugging is required after primary drilling on the metal base in order to isolate it from the circuitry.
Double Sided Metal Core PCB
It also has same two layers of copper conductor like Double layers MCPCB, but the metal core is in the middle of two conductor, so there're conductors (trace) on both sides of metal core, and were connected to each other by Vias. So we named it "Double sided MCPCB", and you can populated SMD on both top and bottom.
Different with Single layer MCPCB, double sided MCPCB also requires an additional pressing step to laminate the imaged thermal conductive laminate and metal core (also known as metal base) together. But sometimes, some raw Metal Clad material vendor will supply board material which already laminated.
Compared with normal FR4, this sturcture need more technology and experience on laminating of two layers together with metal core.
Multi Layers Metal Core PCB
Just like FR4 PCB, we can also make boards with more than 2 layers of traces and we named it "Multi Layers MCPCB". The structure is similar with FR4 Multi Layers, but it much more complex to make.
You can populated more components on the boards, put signal and ground layer into seperated layers, to achieve better performance in electrical performance.
Compared with normal FR4, this sturcture need more technology and experience on laminating of more than two layers together with metal core and the cost is much higher than 2 layers MCPCBor double sided MCPCB.
Application of MCPCB
LED lights:High-current LED, Spotlight, high-current PCB
Industrial power equipment:High-power transistors, transistor arrays, push-pull or totem pole output circuit (to tem pole), solid-state relay, pulse motor driver, the engine Computing amplifiers (Operational amplifier for serro-motor), pole-changing device (Inverter)
Cars:firing implement, power regulator, exchange converters, power controllers, variable optical system
Power:voltage regulator series, switching regulator, DC-DC converters
OA:Printer driver, large electronic display substrate, thermal print head
Audio:input - output amplifier, balanced amplifier, pre-shield amplifier, audio amplifier, power amplifier
Others:Semiconductor thermal insulation board, IC arrays, resistor arrays, Ics carrier chip, heat sink, solar cell substrates, semiconductor refrigeration device
Advantage:
1. Aluminium PCB & LED PCB factory directly
2. Aluminium PCB & LED PCB Have the comprehensive quality control system
3. Aluminium PCB & LED PCB good price
4. Aluminium PCB & LED PCB quick turn Delivery time from 48hours.
5. Aluminium PCB& LED PCBcertification(ISO/UL E354810/RoHS).
6. 8 years experience in exporting service
7. Aluminium PCB& LED PCB is no MOQ.
8. PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting
material
our Aluminium base material :bergquist(usa),Polytronics(Taiwan),totking(china),etc. thermal conductivity range from 1W/m.K to 8 W/m.K Withstand Voltage range is 2KV to 8KV which can help us to meet any need of our clients,also reduce purchasing cost.
Capability
layers:1-4layers
Base material: Aluminum/Copper/Iron Alloy
Thermal Conductivity (dielectrial layer): 0.8, 1.5, 2.0, 3.0 W/m.K.
Withstand voltage:2000-8000V
Board Thickness: 0.5mm~3.0mm(0.02"~0.12")
Copper thickness: 0.5 OZ, 1.0 OZ, 2.0 OZ, 3.0 OZ, up to 6 OZ
Outline: Routing, punching, V-Cut
Soldermask: White/Black/Blue/Green/Red ,Taiyo PSR4000 white
Legend/Silkscreen Color: Black/White
Surface finishing: Immersion Gold, HASL, OSP
Max Panel size: 600*1200mm(23.62"*47.24")
Packing: Vacuum/Plastic bag
Samples L/T: 4~6 Days
