1 Layer CEM3 Single Sided PCB With OSP Surface Finish For Solar Products

PCB Certifications
Good quality Flexible PCB Board
Good quality Flexible PCB Board
Customer Reviews
The board quality is very good! We have been WonDa’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Rob

The board quality is very good! I’m surprised with the low cost and quick delivery. It is totally out of my expectation. I will definitely come back.

—— Victoria, Australia

I'm Online Chat Now

Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).








Material:





Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





Structure:



First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.





Production Process:


Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Application



Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit

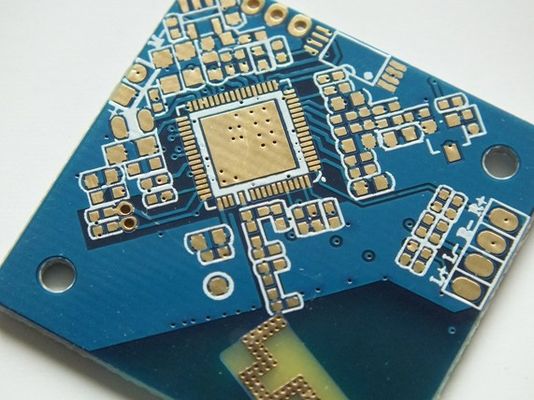

1 Layer CEM3 Single Sided PCB With OSP Surface Finish For Solar Products

1 Layer CEM3 Single Sided PCB With OSP Surface Finish For Solar Products
1 Layer CEM3 Single Sided PCB With OSP Surface Finish For Solar Products

Large Image :  1 Layer CEM3 Single Sided PCB With OSP Surface Finish For Solar Products

Product Details:

Place of Origin: China
Brand Name: SYF
Certification: UL,ISO9001:2008,ROHS,REACH, HALOGEN FREE,SGS
Model Number: SYF-057

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: INNER VACCUM-PACKED WITH OUTER CARDBOARD CARTON
Delivery Time: 6-8 DAYS
Payment Terms: L/C,T/T,Paypal
Supply Ability: 1 MILLION PIECES PER MONTH
Characteristic Service: ODM/OEM/PCBA
Features 1: Gerber file needed
Features 2: 100% E-test
Features 3: Quality guarantee and professional after-sale service
Detailed Product Description
High Light:

single sided printed circuit boards

,

blank circuit board


1 Layer CEM3 Single Sided PCB With OSP Surface Finish For Solar Products



PRODUCT’S DETAILS

Raw Material

CEM3

Layer Count

1-Layer

Board Thickness

2.0mm

Copper Thickness

2.0oz

Surface Finish

ENIG(Electroless Nickel Immersion Gold)

Solder Mask

Green

Silkscreen

White

Min. Trace Width/Spacing

0.075/0.075mm

Min. Hole Size

0.25mm

Hole Wall Copper Thickness

≥20μm

Measurement

300×400mm

Packaging

Inner: Vacuum-packed in soft plastic bales
Outer: Cardboard Cartons with double straps

Application

Communication,automobile,cell,computer,medical

Advantage

Competitive Price,Fast Delivery,OEM&ODM,Free Samples,

Special Requirements

Buried And Blind Via, Impedance Control, Via Plug,
BGA Soldering And Gold Finger Are Acceptable

Certification

UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE
