Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
Product Details:
Payment & Shipping Terms:
|
| High Light: | double side pcb,double layer pcb |
||
|---|---|---|---|

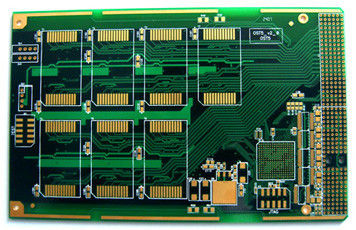

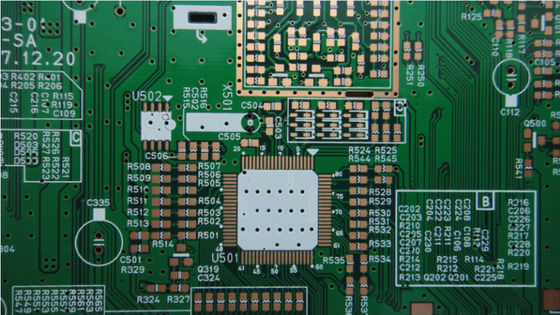

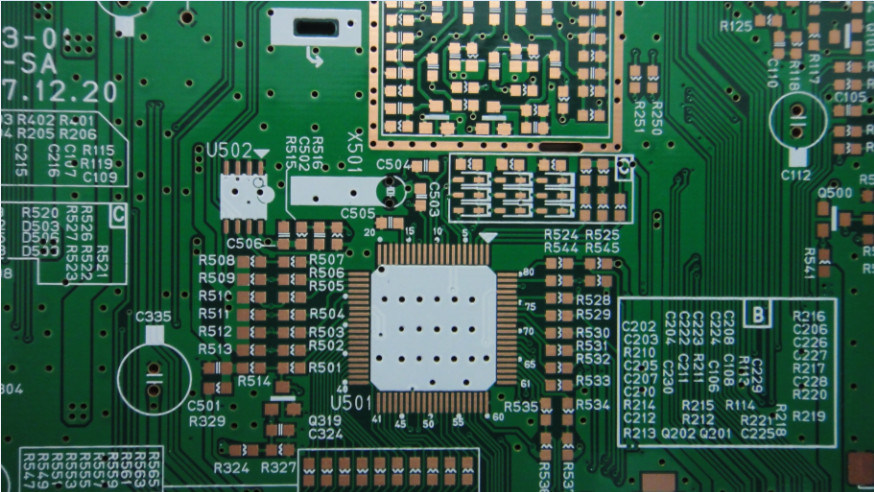

Green FR4 Double Sided PCB Power Board with Lead -free HASL
Quick Specification
|
PCB Type: |
Double-sided PCB |
|
Layer Count: |
2 layer |
|
Min .Line Width/Space: |
4mil/4mil |
|
Min. Via Diameter: |
0.3mm |
|
Finish Thickness: |
1.6mm |
|
Surface Finish: |
Lead-free HASL |
|
Size: |
90*80MM |
|
Material: |
FR4-1.6MM |
|
Color: |
Green |
|
Function: |
Power board |
We are one stop printed circuit board manufacturer , providing PCB fabrication services for single, double or multilayer PCBs in low volume and high volume production amounts with a wide range of materials and technology options.
Leveraging our design and assembly services in a turnkey production system, we can provide low cost PCB manufacturing with the highest quality. Using a variety of inspection methodologies to ensure the functionality of the final product. We offer Full Spec, small quantity printed circuit boards and Custom quick turn PCBs. In addition, we are the premier provider of printed circuit boards to the Military/Aerospace/Defense/Medical and Commercial Industries.
Technical Capabilities
|
Number of layers |
1, 2, 4 or 6, up to 36 layers |
|
Order Quantity |
1 to 500,000 |
|
Board shape |
Rectangular, round, slots, cutouts, complex, irregular |
|
Board type |
Rigid, flexible, rigid-flexible |
|
Board material |
FR-4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc. |
|
Board cutting |
Shear, V-score, tab-routed |
|
Board thickness |
Flex, 0.2 ~ 6.0 mm, 0.01 ~ 0.25″ |
|
Copper weight |
1.0, 1.5, 2.0 Oz |
|
Solder mask |
Double-sided green LPI, Also support red, white, yellow, blue, black |
|
Silk screen |
Double-sided or single-sided in white, yellow, black, or negative |
|
Silk screen min line width |
0.006″ or 0.15mm |
|
Max board dimensions |
45 x 45″ or 114 x 114 cm |
|
Min trace/gap |
0.004”, 0.1mm, or 4 mils |
|
Min drill hole diameter |
0.006”, 0.15mm, or 6 mils |
|
Surface finish |
HASL,Nickle, Imm Gold,Imm Tin,Imm Silver, OSP etc. |
|
Board thickness tolerance |
±10% |
|
Copper weight tolerance |
±0.25 oz |
|
Minimal slot width |
0.12”, 3.0 mm, or 120 mils |
|
V-score depth |
20-25% of board thickness |
|
Plated through holes |
Yes |
|
Sink holes |
Yes |
|
Design file format |
Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG |
