Cell Phone PCB

  • High Precision Cell Phone PCB suppliers



Introduction


We can make single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes




Main Base Material


FR-1, FR-2, FR-4, CEM-1, CEM-3, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
We choose the best base material suppliers as our partners, such as KB and Shengyi to guarantee our products with high quality.




Surface Finish


Hot air Lev p lead free HASL, immersion gold/silver/tin, plating gold, OSP




Board Thickness


Inner core thickness 0.15-1.5mm, finished board thickness 0.20-3mm





Service



*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.

*- Suggest best quality replacement with lower price.

*- Engineering support for test and provide suggestions for mass production.

*- Suggest best shipment method.

*- Sign NDA to keep your design safe.

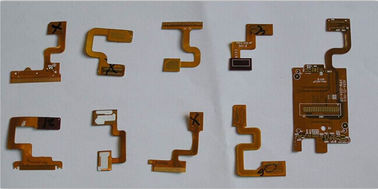

200HZ - 1500HZ PET Flexible Printed Cell phone Circuit Board 250V DC

200HZ - 1500HZ PET Flexible Printed Cell phone Circuit Board 250V DC
200HZ - 1500HZ PET Flexible Printed Cell phone Circuit Board 250V DC

Large Image :  200HZ - 1500HZ PET Flexible Printed Cell phone Circuit Board 250V DC

Product Details:

Place of Origin: China
Brand Name: TKM MS
Certification: ISO9001:2008, SGS,Rohs
Model Number: TKM—MS--221

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: negotiation
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C
Supply Ability: 100000Pieces per month
Detailed Product Description
High Light:

electronic circuit board

,

multilayer printed circuit board

Single Sided PET Flexible Printed Cell phone Circuit Board 250V DC





Quick Detail:



Name

FPCB

Material

Cu: 1 oz

PI: 1 mil

Color

Transparent,red,yellow,

green,blue.Pink.,purple

Surface treatment

pure-tin plating

Minimum hole dimension

0.3mm

Chemical resistance

Meet IPC standard:

Minimum linear width

0.08mm

Minimum linear distance

0.08mm

External tolerance

+/-0.05mm

Welding resistance

280 more than 10 seconds

Peeling Strength

1.2kg/cm2

Heat resistance

-200 to +300 degrees C

Surface resistivity

1.0*1011

Bandability:

Meet IPC standard





Description:

The main technical indicators

1. Max size: single sided, double sided:600mm * 500mm  Multi-layer: 400mm * 600mm
2. Processing thickness:0.2mm -4.0mm

3 Copper foil substrate thickness: 18μ(1/ 2OZ ),35μ( 1OZ ),70μ( 2OZ )
4 Common material: FR-4 , CEM-3 , CEM-1, Polytetrachloroethylene,FR-1(94V0,94HB)
5. Light copper,Nickel-plated,Gilded,HAL;Immersion Gold,Antioxidant,HASL,Immersion Tin,etc.





Applications:



1. The mobile phone

Focuses on the flexible circuit board light weight and thin thickness. Can effectively save the volume of products, easy connection of the battery, microphone, and buttons and into one.



2. Computer and LCD screen

Use the one line configuration of flexible circuit boards, and thin thickness. The digital signal into the picture, through the LCD screen



3. CD player

Focuses on three dimensional assembly characteristics of flexible circuit boards and thin thickness. The huge CD to carry around



4. Disk drives

Regardless of the hard disk, or diskette, is very dependent on FPC high softness and thickness of the 0.1 mm slim, read data finish quickly. Either a PC or NOTEBOOK.



5. The latest applications

Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su ensi. N cireuit) and the components of xe packaging board, etc





Specifications



Type

PCB

Application

Electronic Products

Color

blue

Feature

  • Energy-efficient & Low power

Machine Stiffness

Rigid

Lays



Customized

Material

PET /PC

I nsulation Material

Organic resin

I nsulation layer thichness

General

Antiflaming Speciality

VO

Processing Technic

Rolled foil

Reinforcing material

Glass fiber

Insulating Resin

Polyimide resin

Export Markets

Global





 Process Capability



1. Drilling:The minimum diameter 0.1mm

2. Hole metallization:Minimum aperture 0.2mm,Thickness / aperture ratio 4:1

3. Wire width: Minimum:Gold plate 0.10mm, Tin plate0.1mm

4. Wire spacing: Minimum:Gold plate 0.10mm, Tin plate0.1mm

5. Gold plate: nickel layer thickness:≧2.5μ,Gold layer thickness: 0.05-0.1μm or according to customer requirements

6. HASL: tin layer thickness:≧2.5-5μ

7. Paneling: Line-to-edge minimum distance: 0.15mm hole to edge minimum distance: 0.15mm smallest form tolerance: ± 0.1mm

8. Socket chamfer: Angle: 30 degrees, 45 degrees, 60 degrees Depth: 1-3mm

9. V Cut: Angle: 30 degrees, 35 degrees, 45 degrees Depth: thickness 2/3 Minimum size: 80mm * 80mm
