Introduction
PCB Assembly is a process that requires knowledge not just of PCB components and assembly but also of printed circuit board design, PCB fabrication and a strong understanding of the final product. Circuit board assembly is just one piece of the puzzle to delivering the perfect product the first time.
San Francisco Circuits is a one-stop solution for all circuit board services so we are often entrenched with the PCB production process from design to assembly. Through our strong network of well-proven circuit assembly and manufacturing partners, we can provide the most advanced and nearly limitless capabilities for your prototype or production PCB application. Save yourself the trouble that comes with the procurement process and dealing with multiple components vendors. Our experts will find you the best parts for your final product.
PCB Assembly Services:
Quick-turn prototype assembly
Turn-key assembly
Partial turn-key assembly
Consignment assembly
RoHS compliant lead-free assembly
Non-RoHS assembly
Conformal coating
Final box-build and packaging
PCB Assembly Process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
Testing Services
X-Ray (2-D and 3-D)
BGA X-Ray Inspection
AOI Testing (Automated Optical Inspection)
ICT Testing (In-Circuit Testing)
Functional Testing (at the board & system level)
Flying Probe
Capabilities
Surface Mount Technology / Parts (SMT Assembly)
Through-Hole Device / Parts (THD)
Mixed Parts: SMT & THD assembly
BGA / Micro BGA / uBGA
QFN, POP & lead-less chips
2800 pin-count BGA
0201 / 1005 passive components
0.3 / 0.4 Pitch
PoP Package
Flip-chip under-filled CCGA
BGA Interposer / Stack-up
and more…
Product Details:
Payment & Shipping Terms:
|
| Copper Thickness: | 1 Oz,As Your Request | Board Thickness: | 1.6mm |
|---|---|---|---|
| Min. Hole Size: | 0.25mm | Min. Line Width: | 0.075mm(3mil) |
| Min. Line Spacing: | 0.075mm(3mil) | Surface Finishing: | HASL Lead Free |
| Material: | FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum | Layout: | 1-22 Layer |
| High Light: | pcb assembly process,circuit board assembly |
||

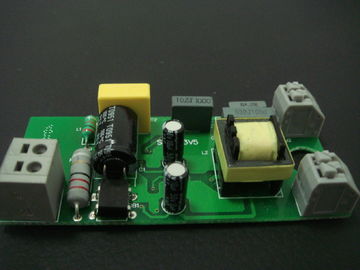

CEM-1 CEM-3 Prototype PCBA Design Printed circuit board Assembly Service
Specifications
Welcome to Rigao Electronics .CO.,Ltd.
Single-side,double-sided and multilayer PCB and PCB Assembly manufacturer/OEM
- Contract Manufacturing
- Mixed-technology (High speed SMT & Through hole assembly)
- PCB Design & Assembly and copy service
- Prototyping
- Components purchasing
- Metal box,Coil,Cable and Wire Assemblies
- Plastics and Molds
| PCB Assembly Specifications | |
| Quantity | Prototype and small to middle volume are our specialty |
| Type of Assembly | SMT and Thru-hole |
| Type of Service | Turn-Key, Partial Turn-Key or Consignment |
| Solder Type | Water Soluble Solder Paste, Leaded and Lead-Free |
| File Formats | Bill of Materials |
| Gerber Files | |
| Pick-N-Place File (XYRS) | |
| Bare Board Size | Smallest: 0.25 x 0.25 Inches |
| Largest: 20 x 20 Inches | |
| Components | Passives Down to 0201 Size |
| BGA and VFBGA | |
| Leadless Chip Carriers/ CSP | |
| Double-Sided SMT Assembly | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component Packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same Day Service to 15 day service |
| Testing | X-RAY Inspection & AOI Test |
PCB Assembly Technical Capability
We deliver high quality surface-mount technology (SMT) products through the use of modern, well maintained SMT lines that are operated by trained professionals. Our SMT lines are capable of handling both low and high volume through-put, can perform single and double sided component placement, mixture of SMT automatic and manual component assemblies, SMT and through-hole assemblies.
Capability 1.SMT with 4 million placements per day
2.Manual insertion with output 500,000pcs components per day
3.Chip mounting speed is 0.3S/unit,high-point speed is 0.16S/unit
Mount Precision: 1.Chips size:Min.0201
2.Mounting precision:0.1mm
3.Multi-functional machine can match 0.3 pitch packages such as BGA,CSP
Application
Products are applied to a wide range of High-tech industries such as: LED lighting,telecommunication, computer application, lighting, game machine, industrial control, power,automobile and high-end consumer electronics, ect.
By unremitting work and effort to the marketing, products exports to American,Canada, Europe counties,Africa and other Asia-pacific countries.
Quality Certificates
Lead free,ISO,UL,CE
Our Principle is simple, “Act by heart, Make the best.”
Our strengthis distinct, “Years of experiences in PCB and PCBA field”
Our Goal is achievable, “ To be the most reliable supplier of PCB and PCBA.”
Our orientation is clear, “Focus on prototypes and low to medium volume business ”
