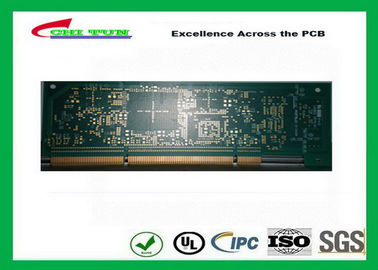

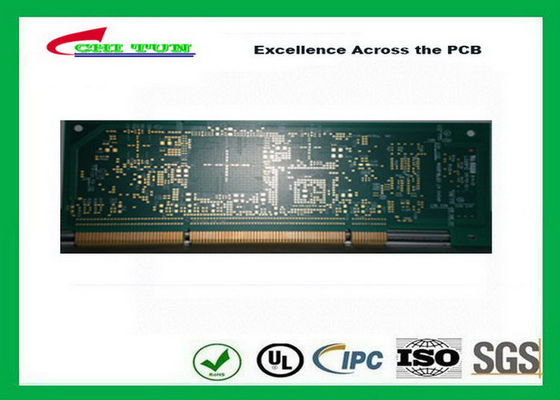

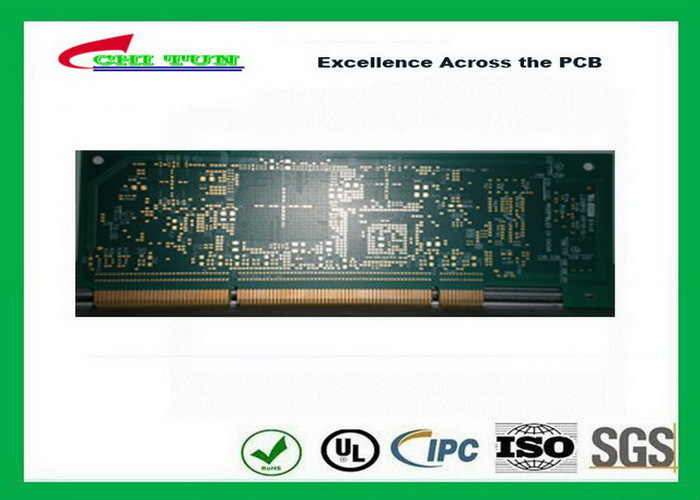

8layer Quick Turn PCB Prototyping FR4 tg150 Gold Finger PCB

8layer Quick Turn PCB Prototyping FR4 tg150 Gold Finger PCB
8layer Quick Turn PCB Prototyping FR4 tg150 Gold Finger PCB

Large Image :  8layer Quick Turn PCB Prototyping FR4 tg150 Gold Finger PCB

Product Details:

Place of Origin: China
Brand Name: CHITUN
Certification: UL/ISO/ROHS/SGS
Model Number: base on customers' requestion

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: base on gerberfiles
Packaging Details: Vacuum package
Delivery Time: 5-15days
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 50000 per week
Detailed Product Description
Material: FR4 TG150 Board Thickness: 1.6mm
Copper: 1oz Surface Finish: Immersion Gold + Gold Finger
Solder Mask: Green Sillkscreen: White
Finish: Routing/Bevel Standard: IPC Stardard
High Light:

quick turn pcb assembly

,

quick turn pcb fabrication

8layer Quick Turn PCB Prototyping FR4 tg150 Gold Finger PCB



TECHNOLOGY:

. RoHS/ Lead Free

. HDI Microvias

. Blind Vias

. Buried Vias

. Selective Plating

. Impedance Control



Manufacturing Standard:

. IPC-A-600G Class II

. IPC-A-600G Class III

. PERFAG 2E for Double-Sided Board

. PERFAG 3C for Multilayer Board



Capability

Min. Finished Holes Size: 0.008" (0.20mm)

Micro vias diameter: 0.004 TO 0.010 inches (0.10 - 0.25mm)

Minimum line width/spacing: 0.004/0.004 inches (0.10mm/ 0.10mm)

Maximum copper thickness: 5oz (140um)



Thin board thickness:

. DS - 0.008 inches (0.20mm)

. 4/L - 0.016 (0.40mm)

. 6/L - 0.020 inches (0.60mm)



Maximum board thickness:

. 275.8mil (7.0mm)



Surface treatment:

. HASL/lead free HAL/gold plating

. Immersion gold

. Immersion tin

. Immersion silver

. Gold fingers (hard gold)

. OSP

Contact Details
PCB Board Online Marketplace

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
