Cell Phone PCB

Introduction

We can make single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes

Main Base Material

FR-1, FR-2, FR-4, CEM-1, CEM-3, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
We choose the best base material suppliers as our partners, such as KB and Shengyi to guarantee our products with high quality.

Surface Finish

Hot air Lev p lead free HASL, immersion gold/silver/tin, plating gold, OSP

Board Thickness

Inner core thickness 0.15-1.5mm, finished board thickness 0.20-3mm

Service

*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.

*- Suggest best quality replacement with lower price.

*- Engineering support for test and provide suggestions for mass production.

*- Suggest best shipment method.

*- Sign NDA to keep your design safe.

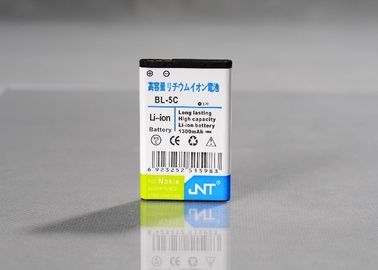

AAA Grade 600mAh To 1100mAh High Capacity Nokia Cell Phone Batteries BL-5C Lithium

Name: AAA Grade 600mAh To 1100mAh High Capacity Nokia Cell Phone Batteries BL-5C Lithium
Brand: JNT
SKU: BL-5C
Price: 0.9 USD
Availability: InStock
Rating: 4.8 (163 reviews)

Large Image : AAA Grade 600mAh To 1100mAh High Capacity Nokia Cell Phone Batteries BL-5C Lithium

Product Details:

Place of Origin:	SHENZHEN
Brand Name:	JNT
Certification:	CEE,FCC,RoHS
Model Number:	BL-5C

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	USD0.9---1.25
Packaging Details:	Neutral packing / sticker for JNT
Delivery Time:	5--7 work days
Payment Terms:	T/T, Western Union
Supply Ability:	30000pcs per week

Contact Now

Detailed Product Description

Item Name:	BL-5C	Capacity:	600mAh To 1100mAh
Standard Voltage:	3.7V	Board Type:	Double Protection IC Board
Battery Type:	Li-ion	Compatible Models:	N72/N70/5130/2610/7610/E520/3110C/3208C
Highlight:	Nokia mobile phone battery replacement , Nokia original BL 5C battery

AAA Quality Grade,600mAh To 1100mAh High Capacity Nokia Cell Phone Batteries BL-5C 3.7v ,Lithium Batteries

Specification
Battery type	Li-ion
Battery cell grade	AAA
Capacity	600-1100mah option
Unit price	$1.02-1.52
Compatible	N70/1100/1108/1110/1112/1116/1208/1255/1315/1508/1600/1650/1680c/1682c/2112/2302c/2322c/2323c/2332c/3110c/,ect
Voltage	3.7v
Charge voltage	4.2v±0.05v
Max charge current	1.5C
Charge models	CC/CV
Max discharge current	1.0C
Cut-off voltage of discharge	2.5 v±0.05v
Woke temperature	Charge temperature :0—+45°C Discharge temperature -20—+60°C
Storage temperature	-20—+45°C
Relative humidity	65±20%
Cycle life	≥300times
Certification	CE &. RoSH
Durability	High capacity battery cell enables longer standby time and talk time
Eco- friendly	Use environment-friendly materials to minimize contamination
Safety	PCM board provides protection against over-charge,over-discharge, over-current and short-circuit.products have gone through the drop test,smash test and acupuncture test to ensure the safety.
Warranty	12 months
Recycle	Do not discard the battery ignorantly or throw it into fire
Delivery time	Within 3-15 days after we get the payment.
Payment terms	T/T, Westem Union, Paypal
Shipping port	In S henzhen, China

Description:

1. Double protctive IC with NTC PCB offer over-discharging, over-charging,
over-current and short-circuit protection, safeguard for using.
2. Gilded and flexible connecter,better conductive properties,not easy to rust.
3. Safety and stable:Hi-tech lithium-ion battery undergoes drop test ,smash
test and acupuncture test to ensure no fire and explosion in breaking.
4. Agrade li-polymer battery cell,high energy environmental protection
battery,durable energy conservation,long standby time and long taling time.

Characteristic:
1. Double protection IC with NTC PCB offer overcharge,over-discharging,
over-current and short circuit protection
2. Satety and stable, Hi-tech lithium battery,undergoes drop test,smash test
and puncture test to ensure ,no fire and explosion in breaking.
3. Grade A Li-ion battery cell,high energy environmental protection,durable
energy conservation, long stanby time and long talking time.
4. Containing mercury, lead, cadmium and other harmful substances,in full
compliance with environmental requirements.
5. The battery shell is firm and durable, long as the new
6. High energy density cell phone battery
7. High voltage cell phone battery
8. Pollution -free cell phone battery
9. Non-mental cell phone battery

Attention:
1. Do not disassemble the battery
2. Do not place the battery in high temperature above 40 °C environment
or in the fire.Otherwise it may cause the battery explosion.
3. Can not make the battery from or into the water.Now not to apply force
or battery to a fall from a great height.
4. Do not put the battery and keychains. Coin conductors such as mixed.In
case of short circuit.
5. Please use the original charger or reliable battery charger.
