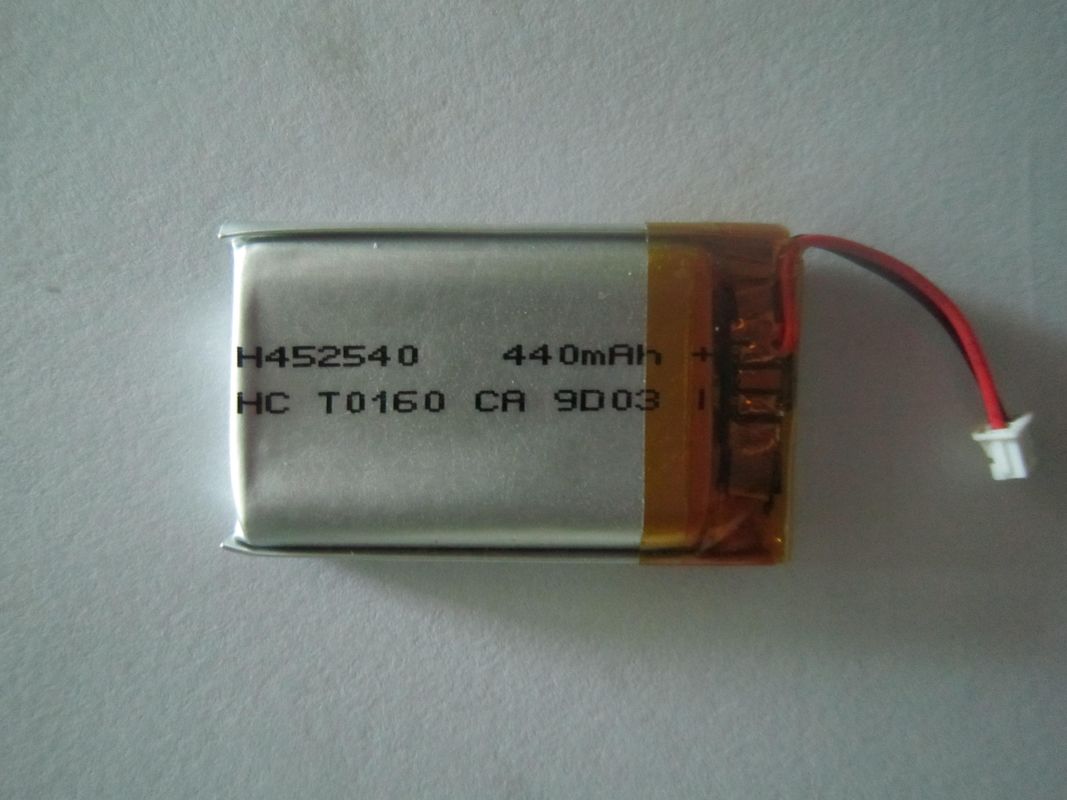

Cell Phone Cells , Vedio Camera 440mah 3.7v Lithium Polymer Batteries High Energy

Large Image : Cell Phone Cells , Vedio Camera 440mah 3.7v Lithium Polymer Batteries High Energy

Product Details:

Place of Origin:	China
Brand Name:	MAXPOWER
Certification:	IEC62133,UN38.3,CE,ROHS,UL
Model Number:	- 452545 440 Mah

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	TRAY / Blister packing
Delivery Time:	20-30 days
Payment Terms:	L/C, T/T
Supply Ability:	2, 00, 000PCS

Contact Now

Detailed Product Description

Highlight:

lithium ion polymer battery

li-ion rechargeable battery

Cell Phone , Vedio Camera 440mah 3.7v High Energy Lithium polymer Batteries

Quick Detail:

Nominal Capacity: 440   mAh
Nominal Voltage:  3.7   V
Size:   452540     MM
Fast Charge time: 4 Hour
High quality rechargeable lithium polymer  battery pack
High energy density
Light weight
LONG cycle life
Low self discharge
Low internal resistance
No memory effect and rechargeable
Cycle Life: 500 cycle
Built-in IC chip will prevent battery pack from over charge and over discharge and prolong battery life
Wide range of applications
Adopts special technical and materials
With the characteristic of safety, reliability and long working time
Tags, plugs, connectors and PCM/PCB are available
Customized configurations are accepted

Description:

Nominal voltage: 3.7 v
Nominal capacity: 440 mAh
Size: 452540 M
up to 800 cycle life
Approx weight: 8 G
Warranty: 12 months
Certificate: CE, ROHS, UL, REACH

Applications:

Communication Equipment: Cell phone, PHS phone, bluetooth phone, interphone

Information Device: Notebook, Tablet PC, PDA, MID, Portable Fax Machine

Audiovisual Equipment: Digital camera, Vedio Camera, Portable DVD, VCD

Others: Minel LED light, E-bike

Specifications:

Bitmap	MAXPOWER INDUSTRIAL CO.LTD
Bitmap	- Lithium Polymer battery specification
Model	- 452540 mAh 3.7V
Dimension	452540 MM ( thickness * width * length )
Voltage	3.7 V
Capacity	440
Iedance	<80
Discharge cut-off voltage	3.0V
Maximum Charge voltage	4.2V
Standard charge current	0.2C
Standard discharge current	0.2C
Approx Weight	8 g
Working teerature	Charge:0-70 degree
Working teerature	Discharge:-20-70 degree
Storage teerature	minus 20 - 85 degree
Normal teerature capacity	440 mAh
Cycle life	800 cycles

Coetitive Advantage:

Professional and good post-sales service

Good factory price

High quality with 1 year warranty

Prot delivery according to customer request

Lithium polymer battery is a better and safer repalcement for lithium-ion battery

Thin format, light weight , large area, and flexibility in design.

Easy customized,Energy density,High capacity.

Communication with customers

A: Does Lithium Polymer battery have memory effect?
B: No memory effect.
A: what is the cycle life for the Lithium Polymer battery?

B: Cycle life is the number of charge and discharge cycles a battery can achieve
Before the discharged capacity drops to end of life, our Lithium Polymer battery cycle life can reach 500 cycles
A: What is the post-sales service?
B: We provide one year quality warranty after delivery and 0.1% spare parts.

A: How do you deliver the battery?
B: We can do sea or air shipment for storage battery with authorized MSDS and Guarantee Letter. They are usually 30% pre-recharged before shipment.
