Designing Custom PCB Boards and PCBA OSP Finishing For Small Diagnostic Tools

Large Image : Designing Custom PCB Boards and PCBA OSP Finishing For Small Diagnostic Tools

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Agilecircuit
Certification:	ISO9001,UL, RoHs, TS16949
Model Number:	custompcbboards1021
Trade Term:	EX-WORK, DDO TO DOOR, FOC, FOB

Contact Now

Detailed Product Description

Highlight:

Custom Printed Circuit Board

Custom PCB Design

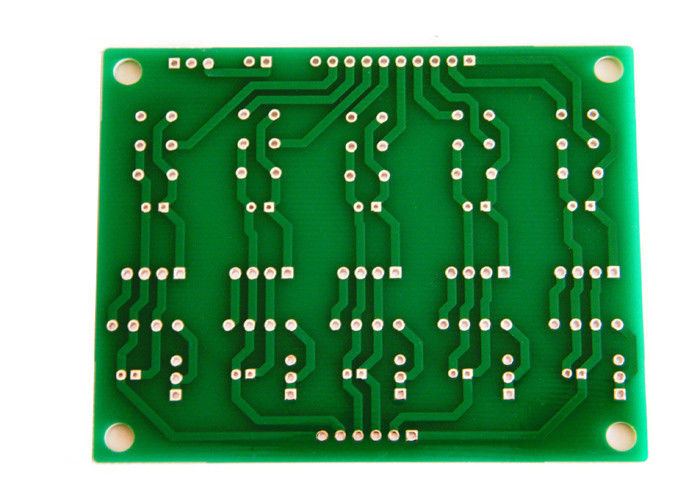

Designing Custom PCB Boards and PCBA OSP Finishing For Small Diagnostic Tools

Quick Details:

FR4 base material
1.6mm board thickness
Double sided with hole non PTH
OSP surface finishing
Green solder mask
From China custom PCB boards production
For Small Diagnostic Tools

Specifications:

1. High TG, High CTI, High Frequency, Heavy Copper

2. FR4, CEM-1, CEM-3, Aluminum ,Copper, Iron, Rogers, Taconic, Teflon

3. Layer Count 1 Layer to 26 layers

4.Castle Hole, Countersink Hole, Hole-in-pad, Carbon Solder mask,Gold Connector, Peelable Mask, Impendence Control

5. Max board dimenstion 580mm x 700mm

6. Leaded / Lead Free HASL, ENIG,OSP, Immersion Tin/Silver

7. Plated Through Hole Min 0.2mm

8. NON-Plated Through Hole Min 0.25mm

9. Min Line Width/Space 3mil/3mil

10. Rate of Delivery on Time >95%

Applications:

Audio Equipment, Car & Marine Electronics, Personal/Office Electronics, Photography Equipment,Automobiles & Motorcycles, TV Tires, Diagnostic Tools, Car DVD Player, Auto Lighting System, Motorcycles Navigation & GPS , Computer, Laptops ,USB Flash Drives, CPUs Keyboards, LCD Monitors, Desktops Routers,Consumer Electronics,MP4 Player, Digital Camera, Television, Digital Photo Frame, Video Game, Console DVD, VCD Player,Home Appliances ,Air Conditioners, Coffee Makers

Description:

We offer manufacturing service of custom PCB boards and PCBA in single-side, double-side and multilayer. With decade’s years of experience in this PCB field, we are now serving customers from more than 40 countries in various electronic industries. Based in China, Agile Circuit mainly specializes in prototypes and medium volume printed circuit boards manufacturing with high quality and low cost.

Advantage:

1. We offer low-cost PCB prototypes. No minimum order limit.

2. Fast quotation, 24 hour prompt response.

3. Our PCB factory is ISO/TS approved and with high & advanced production capabilities.

4. We are full service provider. Our services include PCB manufacturing, PCB assembly, components sourcing, stencil, also PCB layout, from specification to final production turnkey service. It is your good choice for one stop PCB solutions.
