Die Casting 300W Outdoor Aluminum Led Housing For Street Lighting

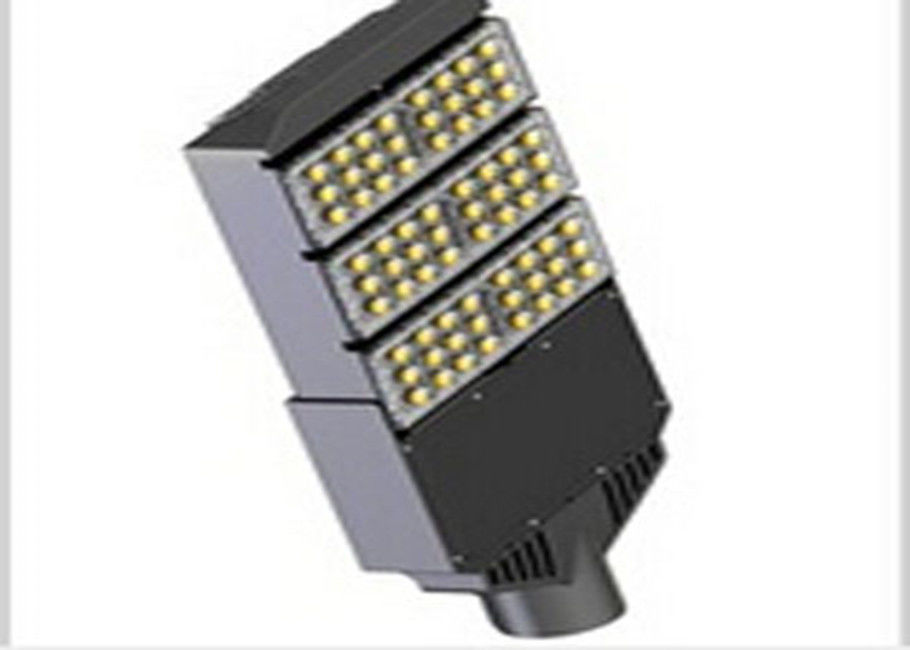

Large Image : Die Casting 300W Outdoor Aluminum Led Housing For Street Lighting

Product Details:

Place of Origin:	Guangdong Guanguan
Brand Name:	LiFong
Certification:	ISO9001:2008
Model Number:	LF-AL021

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Carton/Wooden pallet
Delivery Time:	15-20days
Payment Terms:	T/T, L/C
Supply Ability:	1000000/year

Contact Now

Detailed Product Description

Material:	Aluminum, Aluminum Alloy ADC12 A380	Shape:	According To Customer's Design
Style:	According To Customer's Design	Color:	Black, Silver Or According To Customer
Method:	Die Casting	Process:	Die Casting
Application:	Highway, Trunk Road, Sub Trunk Road, Branch Road
Highlight:	led lighting housing , led light aluminum housing

Die Casting 300W Outdoor Aluminum Led Housing For Street Lighting

Quick details:

Place of origin: Guangdong china (mainland)
Brand name: Lifong
Shape: according to customer's design
Style: according to customer's design
Color: black, silver or according to customer
Process: die casting
Application: highway, trunk road, sub trunk road, branch road

Specifications:

1. LED street light heat sink housing
2. Cree LED with 80x155 degrees
3. Meanwelll driver 3 yeas warranty

Supply 30W, 60W, 90W, 120W, 250W, 180W or 300W aluminium die casting LED street light housing heatsink fins

Features:
Die casting aluminium LED street light housing with heatsink for 300W street module be made of die casting

Using tempering glass and silicon rubber for strong waterproof and dustproof IP65 outdoor usage

More cooling fins in the back for fast heat dissipation to delay long lifespan of LED quality

Suitable for COB LED or SMD LED or Cree XBD XPE XTE 1W, 5W LED inside the PCB board

Using heat copper pipe to conduct the heat from the chip PCB to the cooling fins rapidly fast, so the chip temperature is extremely lower, effectively improve the chip antioxidant function, long lifespan

Packaging:

Packaging detail: plastic bag, foam, carton, wooden box

Processing technique:

Die casting tooling making-prototype/t1-dimension check- sample approval- sop
Die casting- remove water gap-deburring- machining-drilling holes/threading- quality check (dimension and surface) -electrostatic coating-qc (surface vision checking)-packing
High quality outside usage powder coating surface makes very good performance in oxidation resistance and corrosion resistance

Advantages:

Professional research and design team (20 persons), possess all necessary equipment
Strict quality control in each process and finish product quality control
Short delivery lead time: 15-30 days
Optional for OEM or ODM
Comprehensive after-sale service, quick responses for daily communication
