Rigid Flex PCB

  • High Precision Rigid Flex PCB suppliers
  • High Precision Rigid Flex PCB suppliers

Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.





Production Process


Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.






Applications


Rigid flexible PCBs offer a wide array of applications, ranging from military weaponry and aerospace systems to cell phones and digital cameras. Increasingly, rigid flex board fabrication has been used in medical devices such as pacemakers for their space and weight reduction capabilities. The same advantages for rigid flex PCB usage can be applied to military weaponry and weapon control systems.

In consumer products, rigid flex doesn't just maximize space and weight but greatly improves reliability, eliminating many needs for solder joints and delicate, fragile wiring that are prone to connection issues. These are just some examples, but rigid flex PCBs can be used to benefit nearly all advanced electrical applications including testing equipment, tools and automobiles. Not sure what technology needs to be used for your project? Call our experts and we can help you figure out whether you need rigid flex, flex or HDI PCB technology.

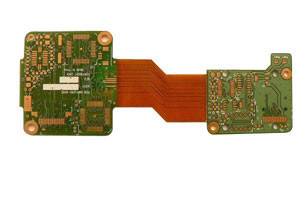

ENIG / HASL rigid flex Immersion Tin PCB / single - sided PCB

ENIG / HASL  rigid flex Immersion Tin PCB / single - sided PCB
ENIG / HASL  rigid flex Immersion Tin PCB / single - sided PCB

Large Image :  ENIG / HASL rigid flex Immersion Tin PCB / single - sided PCB

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Model Number: DCX-0894
Board Thickness: 1.6 mm
Min. Hole Size: 0.1 mm
Min. Line Width: 3 mil
Min. Line Spacing: 3 mil
Certification 1: RoHS
Certification 2: RoHS
Certification 3: UL
Delivery Detail: 5-15 working days
Surface Finishing: ENIG, HASL, LF, OSP
Color: Green,Blue,Black,Red,Yellow etc.
Certification 4: ISO 9001-2008
Copper Thickness: 1 OZ
Base Material: fr4

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

flexible rigid pcb

,

high density pcb

ENIG / HASL  rigid flex Immersion Tin PCB / single - sided PCB

Specifications


rigid flex pcb
1.High quality circuit board
2.Quick turn
3.Strong engineering support
4.UL,SGS,ISO,ROHS




rigid flex pcb



Production Description
No MOQ, No complain over 10 years.
  •
  • specialized in single-sided PCB, double-sided PCB, multilayer PCB and PCBA.
  • Material Type: FR4,CEM-1,non-halogen,Aluminium, high frequency,  94-V0, PI, High TG
  • Surface treatment: HASL, LF, Immersion Gold, Immersion Tin/ silver, Gold Finger, OSP


  Item

  Capabilities

1.Base Material

FR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) /

Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/

TACONIC

2.Layers

1-30

3.Finised inner/outer copper thickness

1-12OZ

4.Finished board thickness

0.2-7.0mm

Tolerance

5.Max panel size

≤2sidesPCB: 600*1500mm

Multilayer PCB: 500*1200mm

6.Min conductor line width/spacing

Inner layers: ≥3/3mil

Outer layers: ≥3.5/3.5mil

7.Min hole size

Mechanical hole: 0.15mm

Laser hole: 0.1mm

Drilling precision: first drilling

8.Warpage

Board thickness≤0.79mm: β≤1.0%

0.80≤Board thickness≤2.4mm: β≤0.7%

Board thickness≥2.5mm: β≤0.5%

9.Controlled Impedance

+/-5%

10. Aspect Ratio

15:1

11.Min welding ring

4mil

12.Min solder mask bridge

≥0.08mm

13.Plugging vias capability

0.2-0.8mm

14. Hole tolerance

PTH: +/-3mil

NPTH: +/-2mil

15.Outline profile

Rout/ V-cut/ Bridge/ Stamp hole

16.Surface treatment

OSP: 0.5-0.5um

HASL: 2-40um

Lead free HASL: 2-40um

ENIG: Au 1-10U’’

ENEPIG: PB 2-5U’’/ Au 1-8U’’

Immersion Tin:0.8-1.2um

Immersion silver: 0.1-1.2um

Peelable blue mask

Carbon ink

Gold plating: Au 1-150U’’

17. E-testing pass percent

97% pass for the first time,+/-2%(tolerance)

FQC-Physical Lab: Reliability tests

18.Certificate

ROHS  UL:E327776  ISO9001:2008  IPC  SGS



Our equipments

1.Drilling workshop

4 drilling bits of drilling machine: 4 sets

2 drilling bits of drilling machine: 2 sets

2. photo plotting workshop

Israel “ORBOTECH” Photo Plotters

3.AOI

AOI machine

4.IPQC

“OXFORD” CMI 700 Copper Thickness Tester

5.Impedance test

USA “Tektronix” DSA 8200 Impedance Tester

6.Outline workshop

CNC routing machine: 7 sets

angle-cutting machine

V-cut machine

7.Testing Workshop

Surpass X-600: 2sets

WTD FT-2808: 5sets

WTD HV300: 1set

8.X-ray

X-ray machine



Acceptable file format

GERBER file, PROTEL series, PADS series, POWER PCB series, AutoCAD series.


Application



  • Products are applied to a wide range of High-tech industries such as:  LED, telecommunication,

  • computer application, lighting, game machine, industrial control, power, automobile and high-end

  • consumer electronics, ect.

  • By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties,

  • Africa and other Asia-pacific countries
