Double Layer PCB

  • High Precision Double Layer PCB suppliers
  • High Precision Double Layer PCB suppliers



Material


FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.




Crafts


Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.





Double Layer PCB Leadfree HASL with blue solder mask


- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.





Application


electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

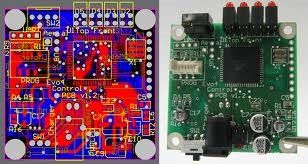

FR4 base double layer pcb assembly and PCBA Lead Free HAL , Immersion gold Finishing

FR4 base double layer pcb assembly and PCBA Lead Free HAL , Immersion gold Finishing
FR4 base double layer pcb assembly and PCBA Lead Free HAL , Immersion gold Finishing

Large Image :  FR4 base double layer pcb assembly and PCBA Lead Free HAL , Immersion gold Finishing

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: FR4 Copper Thickness: 10Z
Board Thickness: 1.6mm Min. Hole Size: 0.4mm
Min. Line Width: 4mil Min. Line Spacing: 4mil
Surface Finishing: HAL,Lead Free HAL,Immersion Gold,OSP,Immersion Tin,Immersion Silver Certificate: ISO9001, ISO14001,TS16949, UL Certifications
Solder Mask Color: Green, Red, Blue, Black
High Light:

two layer pcb

,

2 layer pcb

FR4 base double layer pcb assembly and PCBA Lead Free HAL , Immersion gold Finishing



Specifications


PCBA
1.Low cost, Minimum cost for 3 prototypes PCB is $80 only.
2.Short lead time.
3.PCB ROHS compliant.
4.Turkey service




Free Technology Support



PCB Assembly

              Military standard assembly

              Minimum lead time for assembly is only 3 days

              Turnkey service(PCB manufacture, components procurement and assembly)

              Prototype building, No Minimum quantity Required

              Reliable Parts

              Surface mount, through hole, BGA, QFP, QFN …

              ROHS compliant and lead-free process



PCB Capability



Material: FR4, High TG FR4, Halogen Free material, Rogers HF material, etc.

Layer counts: 2-28 layers

Finished Copper Thickness: 0.5-5 OZ

Finished Board Thickness: 0.2-6.0mm

Min. Line/Track Width: 4mil

Min. Line/Track Space: 4mil

Min. Contour Tolerance: +/-0.1mm

Min. Finished Diameter of PTH Hole: 0.2mm

Max. Board Thickness/Hole Ratio: 12:1

Min. Solder Mask Bridge: 4mil (Min. SMT Pad Space 8mil)

Min. Legend (Silk screen) Track Width: 5mil

Min. Legend (Silk screen) Height: 30mil

Min. drilling slot size: 0.6mm

Solder mask color: green, black, blue, white, yellow, purple, and matt, etc.

Solder mask hardness: 6H

Legend/Silk screen Color: white, yellow, black, etc.

Surface Treatment: HAL, Lead Free HAL, Immersion gold, OSP, Immersion tin, Immersion silver, etc.

Other Technology: Gold finger, peelable mask, Non-across blind/buried vias, characteristic impedance control, Rigid-flex board etc.

Reliability Test: flying probe test/fixture test, impedance test, solderability test, thermal shock test, hole resistance test, and micro metallographic section analysis, etc.

Wrap and twist: ≤0

Flammability: 94V-0

4. Professional engineering staff to provide technical support.

5.OEM and ODM service are welcome.





Contact Details
PCB Board Online Marketplace

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
