Double Layer PCB

  • High Precision Double Layer PCB suppliers
  • High Precision Double Layer PCB suppliers



Material


FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.




Crafts


Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.





Double Layer PCB Leadfree HASL with blue solder mask


- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.





Application


electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

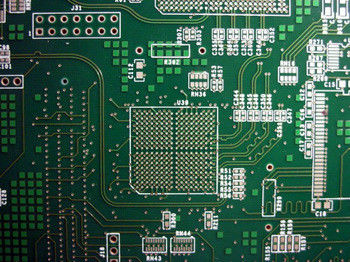

FR4 Double layer pcb board 1 oz Copper Thickness , Immersion gold Finishing ROHS , SGS

FR4 Double layer pcb board 1 oz Copper Thickness , Immersion gold  Finishing ROHS , SGS
FR4 Double layer pcb board 1 oz Copper Thickness , Immersion gold  Finishing ROHS , SGS

Large Image :  FR4 Double layer pcb board 1 oz Copper Thickness , Immersion gold Finishing ROHS , SGS

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Number Of Layers: 2 Layers Base Material: FR-4
Copper Thickness: 1 Oz Board Thickness: 1.2 Mm
Min. Hole Size: 0.3mm Min. Line Width: 0.2mm
Surface Finishing: Immersion Gold Min. Line Spacing: 0.3mm
High Light:

two layer pcb

,

2 layer pcb

FR4 Double layer pcb board 1 oz Copper Thickness , Immersion gold  Finishing ROHS , SGS



Specifications


1.Double-sided PCB
2.FR-4
3.Immersion gold
4.Certificates:ISO9001, UL, ROHS, SGS



The printed circuit board is good for general purpose mobile phone, telecommunications, LED lighting, LED mould and power supply use.
