Double Layer PCB

  • High Precision Double Layer PCB suppliers
  • High Precision Double Layer PCB suppliers



Material


FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.




Crafts


Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.





Double Layer PCB Leadfree HASL with blue solder mask


- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.





Application


electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

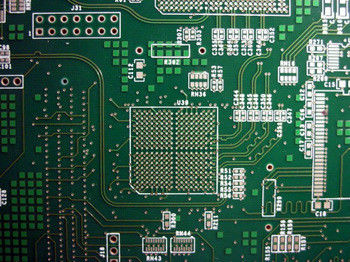

FR4 Double layer pcb board Immersion gold

FR4 Double layer pcb board Immersion gold
FR4 Double layer pcb board Immersion gold

Large Image :  FR4 Double layer pcb board Immersion gold

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: FR-4 Copper Thickness: 1 Oz
Board Thickness: 1.2 Mm Min. Hole Size: 0.3mm
Min. Line Width: 0.2mm Min. Line Spacing: 0.3mm
Surface Finishing: Immersion Gold Number Of Layers: 2 Layers
High Light:

custom printed circuit boards

,

2 layer pcb

FR4 Double layer pcb board Immersion gold



Specifications


1.Double-sided PCB
2.FR-4
3.Immersion gold
4.Certificates:ISO9001, UL, ROHS, SGS




The printed circuit board is good for general purpose mobile phone, telecommunications, LED lighting, LED mould and power supply use.



The Capacity



Technology Project

Manufacture Capability

Product Type

Aluminium/ FR4/Taconic/Tefelon

Surface Finishing

HASL/Immersion Tin/Gold plating/OSP/ Immersion Silver

Layers

1-16 Layers

Max Dimension

1100mm*480mm

Min Dimension

5mm*5mm

Min Trace& line spacing

0.1mm

Warp & Twist

<0.5mm(Thinckness:1.6mm,Dimension: 300mm*300 mm)

Finished Product Thickness

0.2-4.5 mm

Copper Thickness

18 um, 35 um, 70 um, 105 um, 140 um

Hole Inner Copper Thickness

18-40 um

Hole Position Tolerance

+/-0.075 mm

Min Punching Hole Diameter

Board Thickness <1.0mm:1.0mm

Board Thickness:1.2-3.0 mm:1.5 mm

The Min Punching Square Slot Specification

Board Thickness<1.0mm:0.8mm*0.8mm

Board Thickness1.2-3.0 mm:1.0mm*1.0mm

Silk Prints Circuit Tolerance

+/-0.075 mm

Outline Tolerance

CNC:+/-0.1mm Mould:+/- 0.75mm

Min Hole Size

0.8 mm

No limitation in Max hole dimention

V-CUT Angle Deviation

+/-0.5°

V-CUT Board Thickness Range

0.6mm-3.2mm

Min Component Mark Character Style

0.15 mm

Min Open Window for PADs

0.01mm

Solder Mask

Green, White, Blue, Matt black, Grey
