Green FR4 Double Sided PCB Power Board with Lead -free HASL

PCB Certifications
Good quality Flexible PCB Board
Good quality Flexible PCB Board
Customer Reviews
The board quality is very good! We have been WonDa’s customer for more than 4 years. Your good service and quality is too good.

—— Jay

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Rob

The board quality is very good! I’m surprised with the low cost and quick delivery. It is totally out of my expectation. I will definitely come back.

—— Victoria, Australia

I'm Online Chat Now

Double Layer PCB

  • High Precision Double Layer PCB suppliers
  • High Precision Double Layer PCB suppliers



Material


FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.




Crafts


Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.





Double Layer PCB Leadfree HASL with blue solder mask


- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.





Application


electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

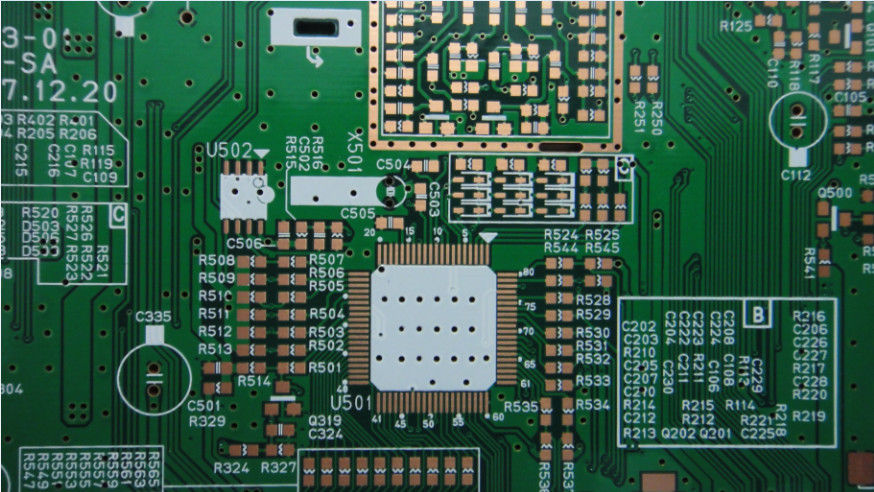

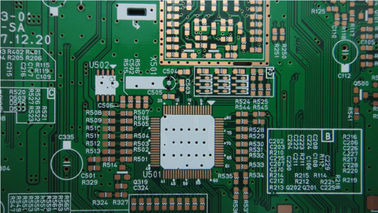

Green FR4 Double Sided PCB Power Board with Lead -free HASL

Green FR4 Double Sided PCB Power Board with Lead -free HASL
Green FR4 Double Sided PCB Power Board with Lead -free HASL Green FR4 Double Sided PCB Power Board with Lead -free HASL

Large Image :  Green FR4 Double Sided PCB Power Board with Lead -free HASL

Product Details:

Place of Origin: China
Brand Name: HD-Double Sided PCB
Certification: ROHS,ISO9001,UL
Model Number: Double-sided PCB

Payment & Shipping Terms:

Minimum Order Quantity: No minimum
Price: Negotiation
Packaging Details: vacuum packed with bubble wraps and silica gel to prevent oxidization and damage during transportation
Delivery Time: Regular lead time is 5 days.  Boards of 4 layers or more will take a little longer. Urgent prototyping of 24 hour turn-around can also be done.
Payment Terms: Paypal, T/T, Western Union, T/T, L/C
Supply Ability: 30000 Square meter/month
Detailed Product Description
High Light:

double side pcb

,

double layer pcb



Green FR4 Double Sided PCB Power Board with Lead -free HASL





Quick Specification



PCB Type:

Double-sided  PCB

Layer Count:

2 layer

Min .Line Width/Space:

4mil/4mil

Min. Via Diameter:

0.3mm

Finish Thickness:

1.6mm

Surface Finish:

Lead-free HASL

Size:

90*80MM

Material:

FR4-1.6MM

Color:

Green

Function:

Power board

  • Paypal accepted for low-volume
  • No Minimum Quantity
  • Extremely competitive pricing
  • Dedicated sales representatives for fast response times



We are one stop printed circuit board manufacturer , providing PCB fabrication services for single, double or multilayer PCBs in low volume and high volume production amounts with a wide range of materials and technology options.

Leveraging our design and assembly services in a turnkey production system, we can provide low cost PCB manufacturing with the highest quality. Using a variety of inspection methodologies to ensure the functionality of the final product. We offer Full Spec, small quantity printed circuit boards and Custom quick turn PCBs. In addition, we are the premier provider of printed circuit boards to the Military/Aerospace/Defense/Medical and Commercial Industries.



Green FR4 Double Sided PCB Power Board with Lead -free HASL





Technical Capabilities



Number of layers

1, 2, 4 or 6, up  to 36 layers

Order Quantity

1 to 500,000

Board shape

Rectangular, round, slots, cutouts, complex, irregular

Board type

Rigid, flexible, rigid-flexible

Board material

FR-4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc.

Board cutting

Shear, V-score, tab-routed

Board thickness

Flex, 0.2 ~ 6.0 mm, 0.01 ~ 0.25″

Copper weight

1.0, 1.5, 2.0 Oz

Solder mask

Double-sided green LPI, Also support red, white, yellow, blue, black

Silk screen

Double-sided or single-sided in white, yellow, black, or negative

Silk screen min line width

0.006″ or 0.15mm

Max board dimensions

45 x 45″ or 114 x 114 cm

Min trace/gap

0.004”, 0.1mm, or 4 mils

Min drill hole diameter

0.006”, 0.15mm, or 6 mils

Surface finish

HASL,Nickle, Imm Gold,Imm Tin,Imm Silver, OSP etc.

Board thickness tolerance

±10%

Copper weight tolerance

±0.25 oz

Minimal slot width

0.12”, 3.0 mm, or 120 mils

V-score depth

20-25% of board thickness

Plated through holes

Yes

Sink holes

Yes

Design file format

Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG





Testing Procedures

We perform multiple quality assurance procedures before shipping out any PCB board. These include:

  • Visual Inspection
  • Flying probe
  • Bed of nails
  • Impedance control
  • Solder-ability detection
  • Digital metallograghic microscope
  • AOI (Automated Optical Inspection)

Quick turn lead times

For 2 layer production boards, we can provide 5-7 days turn around times. For multilayer PCBs, the fastest turnaround time depends on the number of layers and quantity.

Service Guarantee

We make sure to serve each customer professionally, truthfully and friendly to the best of our ability.  We will gladly re-work your project if your project isn’t 100% satisfactory.
