Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

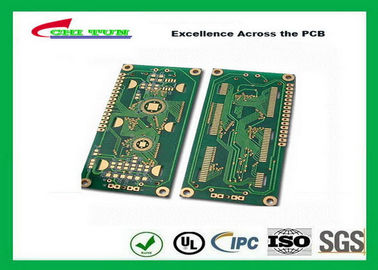

Hard Drive Bare Quick Turn Printed Circuit Boards With 2l Fr4 Material 0.8mm Flash Gold 1oz

Hard Drive Bare Quick Turn Printed Circuit Boards With 2l Fr4 Material 0.8mm Flash Gold 1oz
Hard Drive Bare Quick Turn Printed Circuit Boards With 2l Fr4 Material 0.8mm Flash Gold 1oz

Large Image :  Hard Drive Bare Quick Turn Printed Circuit Boards With 2l Fr4 Material 0.8mm Flash Gold 1oz

Product Details:

Place of Origin: China
Brand Name: CHITUN
Certification: UL/ISO/ROHS/SGS
Model Number: base on customers' requestion

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: base on gerberfiles
Packaging Details: Vacuum package
Delivery Time: 1-10days
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 100000 per week
Detailed Product Description
Material: FR4 TG135 Board Thickness: 1.0mm
Copper: 1oz Surface Finish: Flash Gold
Solder Mask: Green Finish: CNC
Standard: IPC Standard
High Light:

quick turn pcb fabrication

,

quick turn printed circuit boards

Hard Drive Bare Quick Turn Printed Circuit Boards With 2l Fr4 Material 0.8mm Flash Gold 1oz



TECHNOLOGY:

. RoHS/ Lead Free

. HDI Microvias

. Blind Vias

. Buried Vias

. Selective Plating

. Impedance Control



Manufacturing Standard:

. IPC-A-600G Class II

. IPC-A-600G Class III

. PERFAG 2E for Double-Sided Board

. PERFAG 3C for Multilayer Board



Capability

Min. Finished Holes Size: 0.008" (0.20mm)

Micro vias diameter: 0.004 TO 0.010 inches (0.10 - 0.25mm)

Minimum line width/spacing: 0.004/0.004 inches (0.10mm/ 0.10mm)

Maximum copper thickness: 5oz (140um)



Thin board thickness:

. DS - 0.008 inches (0.20mm)

. 4/L - 0.016 (0.40mm)

. 6/L - 0.020 inches (0.60mm)



Maximum board thickness:

. 275.8mil (7.0mm)



Surface treatment:

. HASL/lead free HAL/gold plating

. Immersion gold

. Immersion tin

. Immersion silver

. Gold fingers (hard gold)

. OSP



Other:

. Account of layers: Double-side to above 20 layers (1 to 30 layers)

. Max PCB dimensions: 23 X 35 inches (584.2 X 889.0mm)

. Solder mask bridge between solder dam: 4mil (0.10mm)

. Minimum solder mask annular: 1.5mil (0.038mm)

. Min thickness of solder mask: 0.40mil (10um)

. Solder mask colors: Green, yellow, black, blue, matte, transparence LPI solder mask and peelable



solder mask

. Min height of Legend: 4mil (0.10mm)

. Min width of front: 25mil (0.635mm)

. Legend colors: White, yellow, black



Data format: GERBER, PROTEL, PADS2000, Powerpcb, ODB++

Special material: HTG FR4, high frequency (Rogers, Teflon, ARLON, TYCONIC), halogen free, different material mixing laminating



Other test: Impendence control, resistor of hole test, micro section, ionic cleanliness test, Soldering capacity, thermal shocking, reliability test, etc.
