Double Layer PCB

Material

FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.

Crafts

Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.

Double Layer PCB Leadfree HASL with blue solder mask

- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.

Application

electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

Heavy Gold PCB Double Layer PCB 1.0mm FR4 IT180 Enig Quick

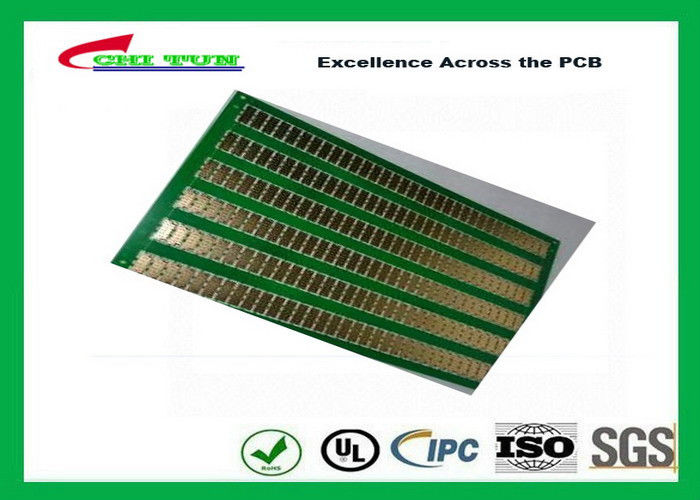

Large Image : Heavy Gold PCB Double Layer PCB 1.0mm FR4 IT180 Enig Quick

Product Details:

Place of Origin:	China
Brand Name:	ChiTunPCB
Certification:	UL/ISO/ROHS/SGS
Model Number:	base on customers' requestion

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	base on gerberfiles
Packaging Details:	Vacuum package
Delivery Time:	8-15days
Payment Terms:	TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability:	80000 Square Meters Per Month

Contact Now

Detailed Product Description

Highlight:

double layer pcb

double sided circuit board

Heavy Gold PCB Double Layer PCB 1.0mm FR4 IT180 Enig Quick

	Product Description
Model Number:	CTEL0210087
Number of Layer:	02Layer
Material:	FR4
Finish Thickness:	1.0mm
copper:	1oz
PCB Size :	150x150mm
Line Width/line space	50/50mil
Min.Hole size :	1.0mm
Surface finish :	ENIG
	Green solder mask
	white sillkscreen
	CNC
	Impedance single + dfference
Place of Origin:	China
Brand Name:	CHITUN
Certification:	UL,ROHS,ISO
Standard:	IPC standard

Technical requirement for pcb&pcb assembly:

1. Professional Surface-mounting and Through-hole soldering Technology
2. Various sizes like 1206,0805,0603 components SMT technology
3.ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4.PCB Assembly With UL,CE,FCC,Rohs Approval
5.Nitrogen gas reflow soldering technology for SMT.
6.High Standard SMT&Solder Assembly Line
7. High density interconnected board placement technology capacity.

Quotation requirement for pcb&pcb assembly:

1. PCB gerber file

2. BOM list for PCBA

3. Sample of PCB and PCBA

4.Test method for PCBA

Heavy Gold PCB Double Layer PCB 1.0mm FR4 IT180 Enig Quick

Tag:

Contact Person: Miss. aaa

Tel: 86 755 8546321

Fax: 86-10-66557788-2345
