Rigid PCB Board

  • High Precision Rigid PCB Board suppliers
  • High Precision Rigid PCB Board suppliers





Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.




Material Types


FR-4, CEM-1,CEM-3, IMS, High TG,High Frequency, Halogen Free,Aluminum base, metal core base





Surface Treatment


HASL(LF), Flash gold, ENIG,OSP(Lead free compatible), Carbon ink,
Peelable S/M, Immersion Ag/Tin, Gold finger plating, ENIG+ Gold finger




Production Process



Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.




Application


LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.a

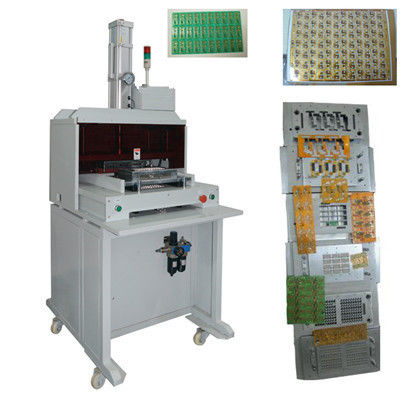

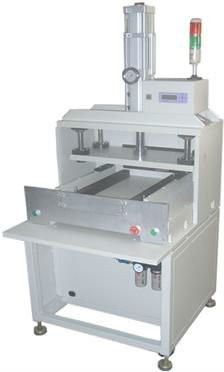

High Efficiency Rigid PCB Punching Machine For Printed Circuit Board

High Efficiency Rigid PCB Punching Machine For Printed Circuit Board
High Efficiency Rigid PCB Punching Machine For Printed Circuit Board High Efficiency Rigid PCB Punching Machine For Printed Circuit Board

Large Image :  High Efficiency Rigid PCB Punching Machine For Printed Circuit Board

Product Details:

Place of Origin: JiangSu
Brand Name: YuSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSPL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1000
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month
Detailed Product Description
Size (mm): 800x730x1230 Weight (kg): 580
Working Area (mm): 460*320 Punch Contribute (T): 8
High Light:

PCB Punch

,

pcb production equipment



High Efficiency Rigid PCB Punching Machine For Printed Circuit Board





PCB Punching Machine Feature:



1. high degree of automation,high efficiency,simple operation

2. can replace multiple mold for production and mold changing easily

3. apply to cut rigid pcb,flexible pcb(FPC),rigid-flexible pcb





PCB punching machine specifications:





Model YSPL
Punch Contribute (T) 8
Working area (mm) 460*320
Size (mm) 930*880*1230
Weight (kg) 680







Model YSPM
Punch Contribute (T) 8
Working area (mm) 330*220
Size (mm) 800x730x1230
Weight (kg) 580




PCB punching machine features:


1. high degree of automation, simple operation and safety
2. can replace a variety of mold, and mold changing easily
3. the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer
4. make internal stress generated by PCB cutting to minimize and avoid stress cracking of tin
5. punching cutting semi-finished PCB, FPC with high efficiency
6. mold and die can be made according to customer's request
