Rigid PCB Board

  • High Precision Rigid PCB Board suppliers
  • High Precision Rigid PCB Board suppliers





Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.




Material Types


FR-4, CEM-1,CEM-3, IMS, High TG,High Frequency, Halogen Free,Aluminum base, metal core base





Surface Treatment


HASL(LF), Flash gold, ENIG,OSP(Lead free compatible), Carbon ink,
Peelable S/M, Immersion Ag/Tin, Gold finger plating, ENIG+ Gold finger




Production Process



Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.




Application


LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.a

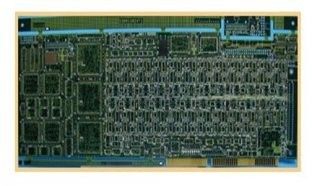

High Precise 16 Layer 3.0m 0.4mm FR4 - TG170 Rigid PCB Board For LED, game machine

High Precise 16 Layer 3.0m  0.4mm FR4 - TG170 Rigid PCB Board For LED, game machine
High Precise 16 Layer 3.0m  0.4mm FR4 - TG170 Rigid PCB Board For LED, game machine

Large Image :  High Precise 16 Layer 3.0m 0.4mm FR4 - TG170 Rigid PCB Board For LED, game machine

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: TS16949

Payment & Shipping Terms:

Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

Rigid PCB Boards

,

electronic circuit board

High Precise 16 Layer 3.0m  0.4mm FR4 - TG170 Rigid PCB Board For LED, game machine

applicaton:

Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.

specification:
16 layer Rigid PCB
Model: Rigid board-16L
Layers: 16
Material: FR4-TG170
Surface treatment: immersion gold
Width/space: 4/4mil
Finish thickness: 3.0m
Min Hot: 0.4mm



Contact Details
PCB Board Online Marketplace

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
