Prototype PCB Boards

  • High Precision Prototype PCB Boards suppliers
  • High Precision Prototype PCB Boards suppliers





Material Type:


 FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger




Application


PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.





FAQ


What are the available holes sizes?


14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm)  would be converted to imperial units (mils) and rounded up to the next mil.



I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?


When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.



How do I specify internal cutouts/milling in my design?


All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.

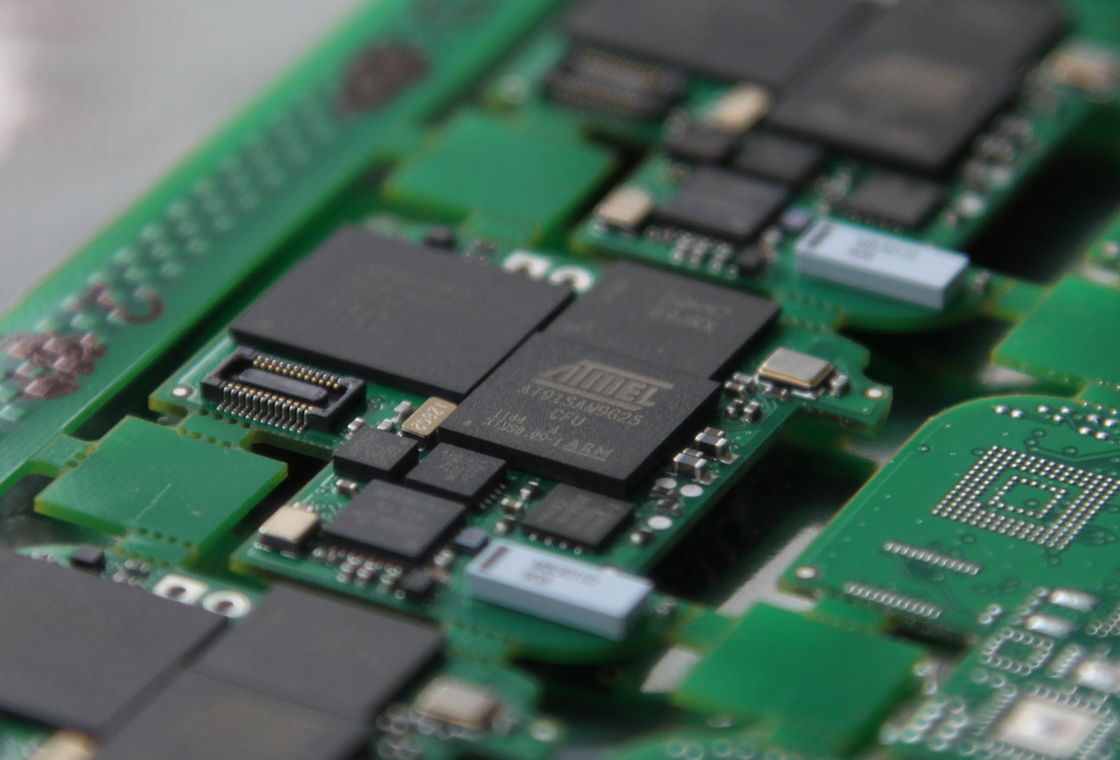

High standard Prototype Pcb Board Assembly

High standard Prototype Pcb Board Assembly
High standard Prototype Pcb Board Assembly

Large Image :  High standard Prototype Pcb Board Assembly

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: FR4 Copper Thickness: 1OZ
Board Thickness: 1.6mm Min. Hole Size: 0.25mm
Min. Line Width: 0.075mm(3mil) Min. Line Spacing: 0.075mm(3mil)
Surface Finishing: HASL Number Of Layers: 8-Layer
Max Panel Size: 800*508mm Surface Treating Process Of Inner Layer: Brown Oxide
Board Finished Thickness: 0.2-4.0mm Layer Count: 1-18
High Light:

pcb prototype board

,

prototype printed circuit boards

High standard Prototype Pcb Board Assembly



Specifications


1.Prototype pcb board assembly
2.SMT/DIP parts soldered for assembling
3.Pcba test via X-ray,AOI
4.15 days lead time




WonDa, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:

- Contract Manufacturing

- Engineering Services

- PCB Design & Assembly

- Product Design

- Prototyping

- Cable and Wire Assemblies

- Plastics and Molds



Detailed Specification of PCB Manufacturing



1

layer

1-18 layer

2

Material

FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,FR-1,FR-2

3

Board thickness

0.2mm-4mm

4

Max.finished board side

800*508mm

5

Min.drilled hole size

0.25mm

6

min.line width

0.075mm(3mil)

7

min.line spacing

0.075mm(3mil)

8

Surface finish/treatment

HALS/HALS lead free,Chemical tin,Chemical Gold,

Immersion gold Immersion Silver/Gold,Osp,Gold Plating

9

Copper thickness

0.5-4.0oz

10

Solder mask color

green/black/white/red/blue/yellow

11

Inner packing

Vacuum packing,Plastic bag

12

Outer packing

standard carton packing

13

Hole tolerance

PTH:±0.076,NTPH:±0.05

14

Certificate

UL,ISO9001,ISO14001,ROHS,CQC

15

profiling punching

Routing,V-CUT,Beveling

16. providing OEM service to all sorts of printed circuit board assembly

Detailed Terms for Pcb Assembly



Technical requirement:

1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.



Quote requirement:

· Gerber file of the bare PCB board

· BOM (Bill of material) for assembly

· To short the lead time, please kindly advise us if there is any acceptable components substitution.

· Testing Guide & Test Fixtures if necessary

· Programming files & Programming tool if necessary

· Schematic if necessary



OEM/ODM/EMS Services for PCBA:

· PCBA, PCB assembly: SMT & PTH & BGA

· PCBA and enclosure design

· Components sourcing and purchasing

· Quick prototyping

· Plastic injection molding

· Metal sheet stamping

· Final assembly

· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

· Custom clearance for material importing and product exporting



Orientronic PCB assembly Equipment:

· SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4

· Reflow Oven: FolunGwin FL-RX860

· Wave Soldering Machine: FolunGwin ADS300

· Automated Optical Inspection (AOI): Aleader ALD-H-350B

· Fully Automatic SMT Stencil Printer: FolunGwin Win-5
