IDC 20 Pin Flat Ribbon Cable Electrical Wiring Harness For PCB Board

Large Image : IDC 20 Pin Flat Ribbon Cable Electrical Wiring Harness For PCB Board

Product Details:

Place of Origin:	China
Brand Name:	eco
Certification:	ISO9001:2008; ROHS; Reach; HF
Model Number:	eco-1064
keywords:	Flat Ribbon Cable

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Price:	0.01-5USD
Packaging Details:	PE inner, carton outer
Delivery Time:	3-15 days upon receipt of payment
Payment Terms:	TT; western union; paypal; L/C
Supply Ability:	500,000pcs/week
Delivery method:	air shipment;sea shipment;UPS;FEDEX;DHL

Contact Now

Detailed Product Description

Cable:	UL2651	Cable Specs:	26awg
Application:	Internal Connect	Connector 1:	IDC Connector,dual Row
Connector 2:	IDC Connector,dual Row	Termination Type:	IDC
Highlight:	IDC connector Cable , Electric wire harness

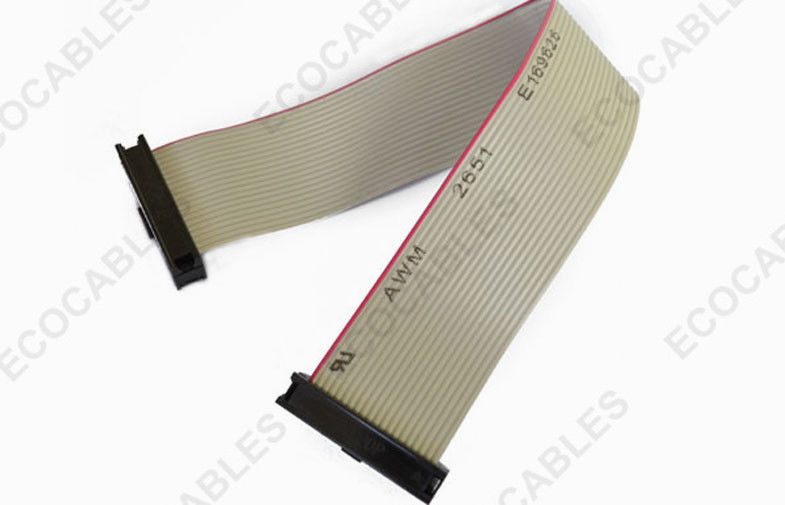

IDC 20 Pin Flat Ribbon Cable Electrical Wiring Harness For PCB Board

IDC 20 Pin Flat Ribbon Cable Electrical Wiring Harness For PCB Board

Place of Origin	Guangdong,China
Brand Name	ECO
Model Number	ECO-1064
Application	Internal Connect
Wire	ul2651 26awg
Wire Color	grey, red side
Connector	IDC connector,dual row, 20p, 2.54mm
Conductor	copperor tinned copper
Test	100% testing inspection
Delivery Time	3-15 days upon receipt of payment
Sevice	OED ODM accepted
Sample	available

IDC 20 Pin Flat Ribbon Cable Electrical Wiring Harness For PCB Board

2.5mm Pitch, Housing, 02~16POS.

2.5mm Pitch, Terminal

2.5mm Pitch, DIP, Top Entry, 2~16POS., Header

2.5mm Pitch, DIP, Side Entry, 2~16POS., Header

8.0 - 10.0mm Pitch, Housing, 01~06POS.

8.0 - 10.0mm Pitch, Terminal

Computer field, led display screen, mobile phone, automobile, electronics, home appliances, multimedia speakers, instruments, electronic toys, communication equipment, network switches, digital products, sewing machines, aviation field, testers and etc.

IDC 20 Pin Flat Ribbon Cable Electrical Wiring Harness For PCB Board

1. We have good long-term business cooperation relationship with many famous connector brands, such as MOLEX, TYCO, JAE, JAM, YEONHO, JST, TYU, etc, which makes it Cost-effective and faster delivery.
2. We have various kinds of wires to choose from, UL PVC single-core wire, silicone wire, teflon wire, Halogen free wire, multi-core cable, flat cable etc. All of them are ROHS, Reach, UL certified to meet the needs of export.
3. Our Product prototyping services.
4. Excellent service
Customer’s inquiry will be replied within 8 hours. During the whole period, from inquiry to shipment, there will be professional foreign trade sales who keep clients informed of order status all the time.
5. Various shipment methods
We always get prepaid freight discount from our logistics supplier for our shipment, UPS, DHL, FEDEX, Air shipment, sea shipment.
