LED PCB Boards

Testing Procedures For PCB Board

---We perform multiple quality assuring procedures before shipping out any PCB board. These include:

* Visual Inspection

* Flying probe

* Bed of nails

·* Impedance control

·* Solder-ability detection

* Digital metallograghic microscope

·*AOI (Automated Optical Inspection)

Detailed Terms for PCB Manufacturing

---Technical requirement for pcb assembly:

* Professional Surface-mounting and Through-hole soldering Technology

* Various sizes like 1206,0805,0603 components SMT technology

* ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

* PCB Assembly With UL,CE,FCC,Rohs Approval

* Nitrogen gas reflow soldering technology for SMT.

* High Standard SMT&Solder Assembly Line

* High density interconnected board placement technology capacity.

Surface Treatment

Lead-free HAL
Gold Plating (1-30 micro inch)
OSP
Silver Plating
Pure Tin Plating
Immersion Tin
Immersion Gold
Gold Finger

Other Service:

A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.

B) We also provide sourcing components , PCB design , PCB copy , PCB drawing , PCB assembly and so on .

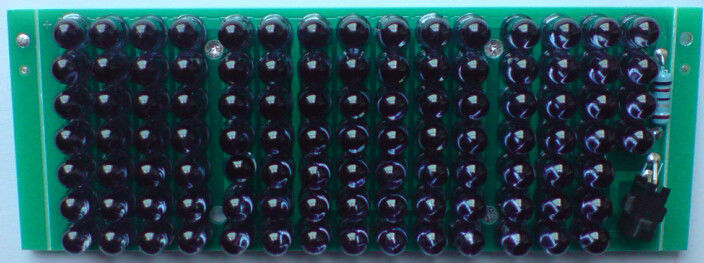

IR LED PCBA / 30 Degree 850nm OSRAM LED Assembly with Bended Leads

Large Image : IR LED PCBA / 30 Degree 850nm OSRAM LED Assembly with Bended Leads

Product Details:

Place of Origin:	China
Brand Name:	HUASWIN
Certification:	ISO/UL/RoHS
Model Number:	HSPCBA1008

Payment & Shipping Terms:

Minimum Order Quantity:	1 sets
Price:	Negotiation
Packaging Details:	Anti-static bag + Anti-static bubble wrap + Good quality carton box
Delivery Time:	15-20 working days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10,000pcs per month

Contact Now

Detailed Product Description

Highlight:

led light assembly

led lamp assembly

High Speed Led Pcb Board Suppliers Custom Pcb Design Services

Specifications:

1. Board Material: FR4

2. Layers: Double Sided

3. Finished Copper: 2OZ

4. Soler mask Color: Green

5. Silkscreen: White

6. Lead Free HASL

PCB capability and services:

1. Single-sided, double-sided & multi-layer PCB (up to 30 layers)
2. Flexible PCB (up to 10 layers)
3. Rigid-flex PCB (up to 8 layers)
4. CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, Hard Gold, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to volume production.
8. 100% E-Test

Detailed Specification of PCB Manufacturing

1	layer	1-30 layer
2	Material	CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
3	Board thickness	0.2mm-6mm
4	Max.finished board size	800*508mm
5	Min.drilled hole size	0.25mm
6	min.line width	0.075mm(3mil)
7	min.line spacing	0.075mm(3mil)
8	Surface finish	HAL, HAL Lead free,Immersion Gold/ Silver/Tin, Hard Gold, OSP
9	Copper thickness	0.5-4.0oz
10	Solder mask color	green/black/white/red/blue/yellow
11	Inner packing	Vacuum packing,Plastic bag
12	Outer packing	standard carton packing
13	Hole tolerance	PTH:±0.076,NTPH:±0.05
14	Certificate	UL,ISO9001,ISO14001,ROHS,TS16949
15	Profiling punching	Routing,V-CUT,Beveling

PCBA Capability

Surface-mounting technology (SMT) and through-hole/DIP;
In-circuit test;
Min size of component: 0201;
Min IC space: 0.3mm;
Min BGA pitch: 0.5mm (with ball diameter of 0.3mm);
QFP: 0.4 pitch;
With in-house IPC-610-D standard;
Provides OEM services to all sorts of printed circuit board assembly.

Advantage:

We have advanced equipment; Good quality with reasonable price; High output; Quick delivery; Without limitation for the ordering quantity.

Export Markets:

North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia, Western Europe

Tag:

mcpcb,

led pcb,

led light assembly
