IR Receiver USB DVR PCB Board Assembly For Mobile Vehicle DVR

Large Image : IR Receiver USB DVR PCB Board Assembly For Mobile Vehicle DVR

Product Details:

Place of Origin:	China
Brand Name:	Fortunemount
Certification:	CE,ROHS, FCC
Model Number:	MDVB-C4404A

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiation
Delivery Time:	2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Payment Terms:	T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability:	50,000PCS/month

Contact Now

Detailed Product Description

Highlight:

dvr pcb

prototype pcb boards

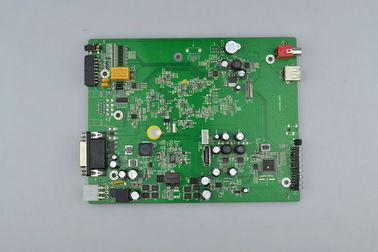

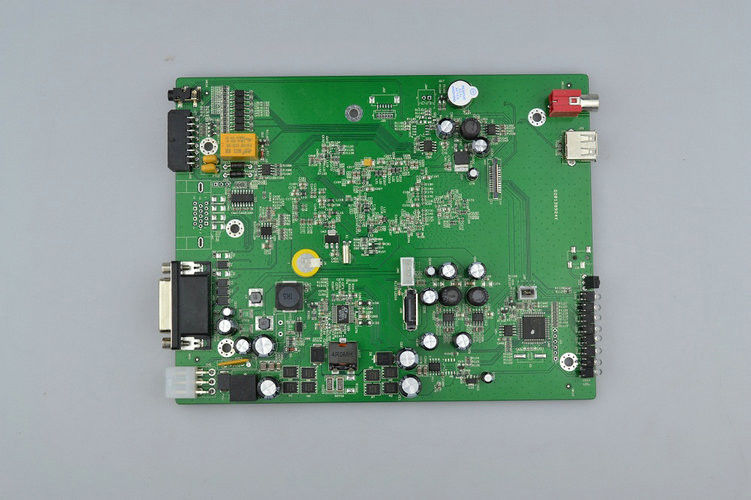

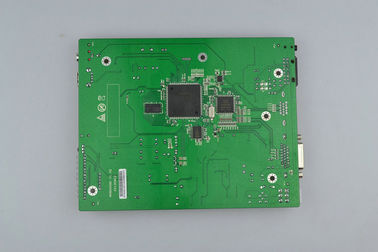

IR Receiver USB DVR PCB Board Assembly For Mobile Vehicle DVR

Interface specifications

IR Receiver USB DVR PCB Board Assembly For Mobile Vehicle DVR

1, LED 2, IR receiver 3, SATA power 4, USB 5, video output

6, Expansion board 7, 5 V power output 8, network 9, external GPS

10, User IO interface, RS485, RS232 11, video and audio input, power output

12, power input 13, SATA 14, electronic lock

Expansion board interface:

Positive:

IR Receiver USB DVR PCB Board Assembly For Mobile Vehicle DVR

1. Expansion board 2. 3G module 3. wifi module

Obverse

IR Receiver USB DVR PCB Board Assembly For Mobile Vehicle DVR

1. BDS/GPS dual module 2. GPS module 3. SIM Slot

Features:

Special function: Mobile data,BDS,wide voltage,mobile DVR player,central management software,SDK etc.

Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.

Playback quality: support 4ch D1,4ch 960H,8ch D1 real-time recording

Main and Sub Stream: Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Display: support TV output,taking the lead in HD resolution technology.

Operation interface: similar to Windows operating style, easy to get started with powerful mouse right-click function.

Network: Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.

Browsers: Support multiple web browsers (ie,chrome,firefox, safari)

Remote Access: With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.

Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.

Others: Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

4 channel or 8 channel Video Input

support 1*HDD Storage;( HDD maximum 2T)

Specifications:

	Model	MDVB-B4104A
system	Main processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	vdieo compression	H.264(Main Profile)
	display quality	monitor:D1
	play quality	960H/D1/Half-D1/CIF/QCIF
	encode capacity	4ch 960H real-time
	decode capacity	1ch 960H real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	HDD,network
	backup mode	Network backup,USB HDD,USB writer,U disk
interface	video input	4ch	8ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
	audio input	4ch	8ch
	audio output	1ch (200-3000mV,5K)
	alarm input	4ch(multiplexing vehicle signal)
	alarm output	2ch
	RJ45 interface	no
	RS485, RS232	One RS485,one RS232
	USB	One USB
	HDD	One SATA port,max.4T
Mobile interface &functions (optional interface board)	GPIO signal	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input；support vehicle information OSD overlay,storage etc.
	GPS Module/external GPS/BDS (optional)	None
	WIFI module (optional)	None
	3G module (optional)	None
	G-Sensor (optional)	None
	others	support delay boot up/shut down
complement	Exclusive player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 4* 12V controllable power supply for external camera
	Power consumption	<10W(HDD without)
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	148*188mm
	weight	180g
