TV PCB Board

Material

FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate

Surface Finish

HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek)

Description

1. Complete products contract PCB assembly and manufacturing services
2. Circuit boards 2 to 30 layers PCB layout, fabrication, PCB assembly and box build
3.Active and passive components source is directly from original manufacturer
4. Enclosure cabinet case plastic injection molding, metal stamping, manufacture and assembly
5. High-precision 0201 size components SMT technology and lead-free
6. RoHS technology SMT process
7. IC pre-program
8. High-precision E-Testing include: ICT in circuit, BGA repaire device, etc.
Prototype and Mass Printed Board Assembly (PCBA)

Services:

1.Single-sided, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. Cem-1, fr-4, fr-4 high tg, aluminum base material.
3. Hal, hal lead free, immersion gold/ silver/tin, osp surface treatment.
4.100% e-test.

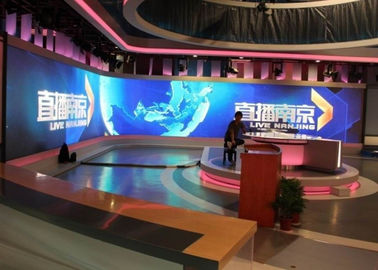

Live Event Indoor LED Display signs SMD3528 Epistar Energy Saving IP65 PCB Board

Large Image : Live Event Indoor LED Display signs SMD3528 Epistar Energy Saving IP65 PCB Board

Product Details:

Place of Origin:	Shenzhen ,China
Brand Name:	LanGao
Certification:	CE/ROHS/FCC/UL/ISO/3C
Model Number:	LGP10

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm. / 1 piece
Packaging Details:	Plywood or Flight Case
Delivery Time:	10-20 days
Payment Terms:	T/T ,L/C ,Paypal or

Contact Now

Detailed Product Description

Usage:	Outdoor	Tube Chip Color:	Full Color
Display Function:	Video	Pixels:	10mm
Brightness:	6000 To 8000cd/sqm	Protection Leve:	IP65
Led Chip:	Epistar/Slian	RGB:	2R1G1B / 1R1G1B
Highlight:	led screen indoor , indoor led sign

High Resolution Live Event Indoor LED Display price SMD3528 Epistar Energy Saving IP65

Application :

1) With good lightening accordance and no mosaic

2) Led advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Pitch size	10mm
Module size	320mm*160mm
Panel pixel(dots)	32*16
Pixel configuration	1Red,1Green,1Blue(SMD 3-in-1)
LED chip	Epistar
Color scale	256-65536grade/10.74 billion colors
Pixel density	10000/square meter
View angle(H/V)	120/60degree
Brightness	≥1200cd/sqm
View distance	5-300m
Power consumption	100-1500W/sqm
Operating temperature	from —25°C to +60°C
Operating humidity	10%--95%RH
Life time	100,000hours
Frame speed	>150frames per second
Refresh frequency	1000Hz
Control distance	100m (without relay),single mode fiber: 20000m,multi mode fiber:500m
Power	110V/220V/380V±15% 50Hz
operating system	Windows98/Me/2000/Xp
Drive mode	constant current driving
display mode	VGA640X480—VGA1600X1024
IP Grade	IP54

Advantage :

1) LED: well-known international brand, with wide viewing angle, high brightness, little attenuation, good heat dissipation, and vivid colors.

2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.

3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space, the range of voltage fluctuation is less 5%, high stability.

4) Connector: Aerial grade brands ensure the stable transmission of power and signal.

5) PCB Board: adopt 4-layer design.

6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person. The replacement of any cabinet can be done within 50 seconds.
