Double Layer PCB

Material

FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.

Crafts

Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.

Double Layer PCB Leadfree HASL with blue solder mask

- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.

Application

electronic products, like

computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.

Molex Milli Grid Through Hole PCB Pin Header Connector For Microwave Oven

Large Image : Molex Milli Grid Through Hole PCB Pin Header Connector For Microwave Oven

Product Details:

Place of Origin:	China
Brand Name:	ES
Certification:	ROHS, UL,HF
Model Number:	ESP1270N

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	Negotiation
Packaging Details:	Tube, Embossed Tape on Reel, Tray
Delivery Time:	5-7 business days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1, 000, 000PCS/week

Contact Now

Detailed Product Description

Highlight:

multi pin connectors

electrical pin connectors

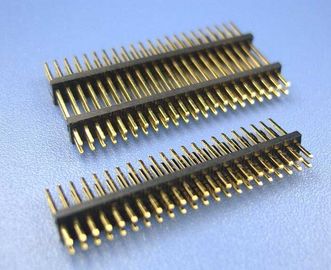

Molex Milli Grid 1.27MM Pitch PCB Pin Header Connector For Microwave Oven

Quick Detail:

Name	Milli Grid PCB header	Application	Microwave Oven
Connector	MOLEX copy male header	Circuits/poles/pins	2~120
Pitch	1.27MM	Certificate	ROHS, UL,HF

Descriptions:

1. High density, high signal

2. Inser directly connect PC boards.
3. Be equal Molex, JST, JWT, TE TYCO PCB header parts.

Specifications:

Gender	Male
Pin	Square, gold plate
Layer	2
Number of Rows	Dual/double
Orientation	Vertical, Right angle
Termination	Through hole, DIP

Application:

Consumer: Copiers, Microwave oven, fax machines, printers, satellite radio, washing machine, White goods

Data/Communications: Desktop computer and motherboard

If you can’t find the part number here, please contact us or send your drawing or part number.
