HDI PCB Board

Material

FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

Surface Treatment

HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Advantage

1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)

Capability:

-High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

-Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

-Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

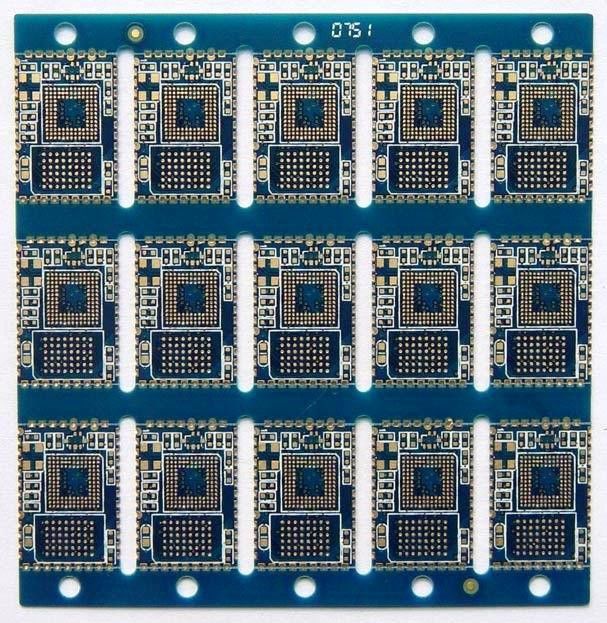

multilayer HDI pcb board

Name: multilayer HDI pcb board
Brand: multilayer HDI pcb board
SKU: multilayer HDI pcb board
Rating: 4.6 (151 reviews)

Large Image : multilayer HDI pcb board

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Square Meter/Square Meters
Packaging Details:	vacuum packaging and carton box
Delivery Time:	6-9 days
Payment Terms:	T/T,Western Union
Supply Ability:	300000 Square Meter/Square Meters per Month

Contact Now

Detailed Product Description

1.multilayer HDI pcb board
2.UL,SGS,ROHS,IS09001,CEC
3.Fast delivery with high quality
4.20years in Pinted circuit board

1.multilayer HDI pcb board

2.UL,SGS,ROHS,IS09001,CEC
3.Fast delivery with high quality
4.20years in Pinted circuit board

Welcome to.......Tian Wei Sheng

We manufacture Printed Circuit Board:High quality with competitive price(Good tolerance,Good warpage,Good solderable...)

The information about our company's process capacity for your reference:

	Specification Inch (mm)
Material	FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3/CEM-1/Aluminium
Layer No.	1-30
Board thickness	0.015"(0.4mm)-0.125"(3.2mm)

Board Thickness Tolerance	±10%
Cooper thickness	1/2OZ-3OZ
Impedance Control	±10%
Warpage	0.075%-1.5%
Peelable	0.012"(0.3mm)-0.02’(0.5mm)

Min Trace Width (a)	0.005"(0.125mm)
Min Space Width (b)	0.005"(0.125mm)
Min Annular Ring	0.005"(0.125mm)
SMD Pitch (a)	0.012"(0.3mm)
BGA Pitch (b)	0.027"(0.675mm)
Regesiter torlerance	0.05mm

Min Solder Mask Dam (a)	0.005"(0.125mm)
Soldermask Clearance (b)	0.005"(0.125mm)
Min SMT Pad spacing (c)	0.004"(0.1mm)
Solder Mask Thickness	0.0007"(0.018mm)

Hole size	0.01"(0.25mm)-- 0.257"(6.5mm)
Hole Size Tol (+/-)	±0.003"(±0.0762mm)
Aspect Ratio	6:1
Hole Registration	0.004"(0.1mm)
Plating
HASL	2.5um
Lead free HASL	2.5um
Immersion Gold	Nickel 3-7um Au:1-3u''
OSP	0.2-0.5um
Outline
Panel Outline Tol (+/-)	±0.004''(±0.1mm)
Beveling	30°45°
V-cut	15° 30° 45° 60°
Certificate	ROHS ISO9001:2000 TS16949 SGS UL
