TV PCB Board

Material

FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate

Surface Finish

HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek)

Description

1. Complete products contract PCB assembly and manufacturing services
2. Circuit boards 2 to 30 layers PCB layout, fabrication, PCB assembly and box build
3.Active and passive components source is directly from original manufacturer
4. Enclosure cabinet case plastic injection molding, metal stamping, manufacture and assembly
5. High-precision 0201 size components SMT technology and lead-free
6. RoHS technology SMT process
7. IC pre-program
8. High-precision E-Testing include: ICT in circuit, BGA repaire device, etc.
Prototype and Mass Printed Board Assembly (PCBA)

Services:

1.Single-sided, double side & multi-layer PCB with competitive price, good quality and excellent service.
2. Cem-1, fr-4, fr-4 high tg, aluminum base material.
3. Hal, hal lead free, immersion gold/ silver/tin, osp surface treatment.
4.100% e-test.

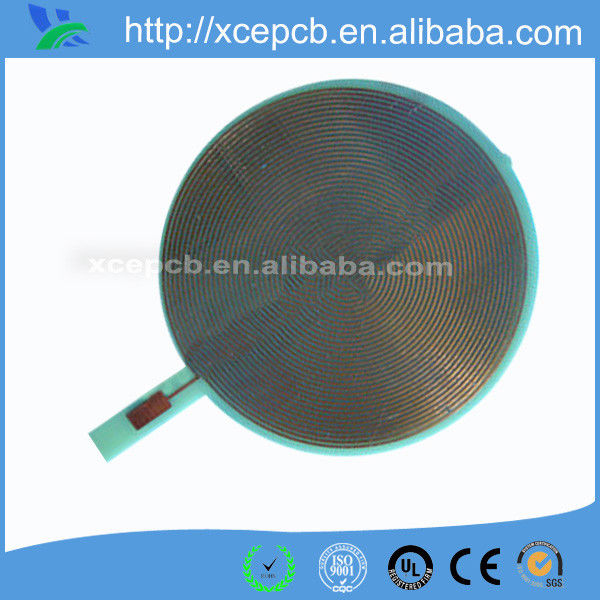

Professional High Frequency Tacoinc PCB Board Manufacture lcd tv pcb board

Large Image : Professional High Frequency Tacoinc PCB Board Manufacture lcd tv pcb board

Product Details:

Place of Origin:	shenzhen
Brand Name:	XCE
Certification:	ISO9001:2000 ;ISO14000;CCC;ROHS;FCC;UL
Model Number:	4-Layer

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	USD1-300/Piece
Packaging Details:	inner:bubble bag outer: carton box
Delivery Time:	3 to 10 working days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Highlight:	lcd tv pcb board

Product Description:

XCE PCB technical specifications
Annual stock Material	Rogers,Taconic,Arton,Isola,F4B,TP-2.FR-4,High TG,Halogen free
Layer No.	1~16
Min board thickness	2 layer0.2mm 4 layer0.4mm 6 layer 0.6mm 8 layer 0.8mm 10 layer 1.0mm
Max panel size	508*610mm
Board thickness tolerance	T≥0.8mm±8%.,T<0.8mm±5%
Wall hole copper thickness	>0.025mm(1mil)
Finished hole	0.2mm-6.3mm
Min line width	4mil/4mil(0.1/0.1mm)
Min bonding pad space	0.1mm(4mil)
PTH aperture tolerance	±0.075mm(3mil)
NPTH aperture tolerance	±0.05mm(2mil)
Hole site deviation	±0.05mm(2mil)
Profile tolerance	±0.10mm(4mil)
Board bend&warp	≤0.7%
Insulation resistance	>1012Ωnormal
Through-hole resistance	<300Ωnormal
Electric strength	>1.3kv/mm
Current breakdown	10A
Peel strength	1.4N/mm
Soldmask regidity	>6H
Thermal stress	288℃20Sec
Testing voltage	50-300V
Min buried blind via	0.2mm(8mil)
Outer copper thickness	1oz-5oz
Inner cooper thickness	1/2 oz-4oz
Aspect ratio	8:1
SMT min green oil width	0.08mm
Min green oil open window	0.05mm
Insulation layer thickless	0.075mm-5mm
Taphole aperture	0.2mm-0.6mm
Special technology	Indepedance,Blind buried via,thick gold,aluminum PCB
Surface finish	HASL,Lead free HASL,Immersion Gold, Immersion Tin, Immersion Silver,OSP ,ENIG ,Golden finger,Blue glue,Gold plating

Appilication:
a Telecom: transmitter. Receiver. Oscillator. Antenna.
b Satellite receiver
c Global location system, amplifier, satellite telecom
d Microwave transmission
e Automobile telephone
f Measure apparatus, LSI inspector, analyser, signal oscillator
g High frequency teletcom, high speed transmission, high security, high transmission quality, high memory transaction
Hot-Sale Poducts:
Professional High Frequency Tacoinc PCB Board Manufacture lcd tv pcb board
FAQ:
Q:Are you a manufacturer?
A:Yes.
Q:How about your delivery time?especially for sample?
A:Normally,it will take 3 to 10 days.to expedite quick samples within 24 hours is available and extra charges will be on your account for the service.
Q:What is your advantage?
A:Prompt delivery,high quality,sufficient stock base.
Q:What is your M.O.Q?
A: Our M.O.Q is 1pcs.
Q: Can you provide us best price?
A: As a manufacturer,we have strong capability to provide you costdown solutions and more competitive prices than the trading company.
Q: How do you ship the goods and how long does it take?
A: We dispatch the goods to our customers by DHL,UPS,FedEx or TNT express.usually,it takes 3-5 days to arrive.
Q: What file we should offer?
A: Making PCB should offer gerber file of the bare PCB board (protel ,power pcb,PADs file).
