PCB Board Assembly

Introduction

PCB Assembly is a process that requires knowledge not just of PCB components and assembly but also of printed circuit board design, PCB fabrication and a strong understanding of the final product. Circuit board assembly is just one piece of the puzzle to delivering the perfect product the first time.
San Francisco Circuits is a one-stop solution for all circuit board services so we are often entrenched with the PCB production process from design to assembly. Through our strong network of well-proven circuit assembly and manufacturing partners, we can provide the most advanced and nearly limitless capabilities for your prototype or production PCB application. Save yourself the trouble that comes with the procurement process and dealing with multiple components vendors. Our experts will find you the best parts for your final product.

PCB Assembly Services:

Quick-turn prototype assembly
Turn-key assembly
Partial turn-key assembly
Consignment assembly
RoHS compliant lead-free assembly
Non-RoHS assembly

Conformal coating
Final box-build and packaging

PCB Assembly Process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

Testing Services

X-Ray (2-D and 3-D)
BGA X-Ray Inspection
AOI Testing (Automated Optical Inspection)
ICT Testing (In-Circuit Testing)
Functional Testing (at the board & system level)
Flying Probe

Capabilities

Surface Mount Technology / Parts (SMT Assembly)
Through-Hole Device / Parts (THD)
Mixed Parts: SMT & THD assembly
BGA / Micro BGA / uBGA
QFN, POP & lead-less chips
2800 pin-count BGA
0201 / 1005 passive components
0.3 / 0.4 Pitch
PoP Package
Flip-chip under-filled CCGA
BGA Interposer / Stack-up
and more…

Single Layer FR-4 Electronic PCB Board Assembly Service For PCB & PCBA in Medical and Health Field

Name: Single Layer FR-4 Electronic PCB Board Assembly Service For PCB & PCBA in Medical and Health Field
Brand: Fortunemount
SKU: Fortunemount
Rating: 4.9 (191 reviews)

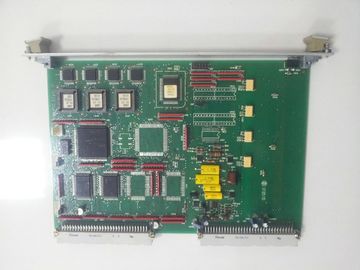

Large Image : Single Layer FR-4 Electronic PCB Board Assembly Service For PCB & PCBA in Medical and Health Field

Product Details:

Place of Origin:	China
Brand Name:	Fortunemount
Certification:	RoHS, CE, FCC

Contact Now

Detailed Product Description

Highlight:

circuit board assembly

pcb assembly services

Single Layer FR-4 Electronic PCB Board Assembly Service For PCB & PCBA in Medical and Health Field

Our services for the PCB Assembly

Re-layout for shortening the board size
Bare pc board fabrication
SMT/BGA/DIP assembly
Full component procurement or the substitute components sourcing
Wire harness and cable assembly
Metal parts, rubber parts and plastic parts including mold making
Mechanical, case and rubber molding assembly
Functional testing
Repairs and inspection of the sub-finished / finished goods

Our capabilities for the PCB Assembly

Stencil Size Range	736 mm x 736 mm
Min. IC Pitch	0.30 mm
Max. PCB Size	410 mm x 360 mm
Min. PCB Thickness	0.35 mm
Min. Chip Size	0201 (0.6 mm X 0.3 mm)
Max. BGA Size	74 mm X 74 mm
BGA Ball Pitch	1.00 mm (Min) / F3.00 mm (Max)
BGA Ball Diameter	0.40 mm (Min) /F1.00 mm (Max)
QFP Lead Pitch	0.38 mm (Min) /F2.54 mm (Max)
Frequency of Stencil Cleaning	1 time / 5 ~ 10 Pieces

Our capabilities for handling the Bare PC Board fabrication

Fabrication data inputs: Gerber data RS-274-X or RS-274-D with aperture list and drill files, design file with Protel, PAD2000, POWERPCB, ORCAD

Layers 2-30 L
Material Types Fr-4, Fr-5, High-Tg, Halogen Free, Rogers,
Isola, Taconic, Arlon, Teflon, Aluminum Based
Max. Panel Dimension 39000mil * 47000mil / 1000mm * 1200mm
Outline Tolerance ±4mil ±0.10mm
Board Thickness 8mil-236mil / 0.2mm-6.0mm
Board Thickness Tolerance ±10%
Dielectric Thickness 3mil-8mil / 0.075mm-0.20mm
Min. Track Width 3mil / 0.075mm
Min. Track Space 3mil / 0.075mm
External Cu Thickness HOZ-6OZ / 17um~210um
Internal Cu Thickness HOZ-6OZ / 17um~210um
Drilling Bit Size ( CNC ) 6mil-256mil / 0.15mm-6.50mm
Finished Hole Dimension 4mil-236mil / 0.1mm—6.0mm
Hole Tolerance ±2mil / ±0.05mm
Hole Position Tolerance ±2mil / ±0.05mm
Laser Drilling Hole Size 4mil / 0.1mm
Aspect Ration 12:1
Solder Mask Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge 2mil / 0.050mm
Plugged Hole Diameter 8mil-20mil / 0.20mm-0.50mm
Impedance Control V-scoring ±10%
Surface Finishing HASL, HASL(lead Free), Immersion Gold, Immersion Tin,
Immersion Silver, OSP, Hard Gold( up to 100u”)

UL and TS16949: 2002 marks
Special requirements: buried and blind vias, impedance control, via plug, BGA soldering and gold finger
Profiling: punching, routing, V-cut and beveling
OEM services to all sorts of printed circuit board assembly as well as electronic encased products are provided

Our manufacturing experience includes, but is not limited to:

Note Book fields	CHARGER BOARD	INVERTER	POWER CPU	LVDS CARD	IR BOARD
	LCD MOTHERBOARD	LED BOARD	RAM CARD	DATA BOARD	BATT BOARD
	DVR MOTHERBOARD	USB BOARD	CARD READER	AUDIO BOARD	ISDN MODEN
PC fields	2.5 inch HDD	PC/MAC FDD	DOCKING PORT	PORT REPILICATOR	PCMCIA CARD
PC fields	3.5 inch HDD	SATA HDD	ADAPTER	DVD ROM	SSD
Telecom fields	DVBT.ATSC TV	GPS UNIT	CAR GPS UNIT	ADSL MODEN	3.5inch DVB-T RECEIVER
Audio & Video fields	MPEG 4 PLAYER	KVM SWITCH	E-BOOK READER	HDMI BOX	DVI BOX
Electronic Security fields	LCD TV MOTHERBOARD	DVR MOTHERBOARD	CCD BOARD	IP CAMERA	CCTV CAMERA
Health & Medical fields	DIGITAL TEMS UNIT	EAR THERMOMETER	BLOOD GLUCOSE TEST METERS	BODY FAT MONITOR	DIGITAL BLOOD PRESSURE MONITOR
LED Application fields	LED AUTO LAMP	LED ROPE LIGHT	LED BULB	OUTDOOR LED DISPLAY	PROJECTION LIGHTING
Test Instrument fields	OSCILLOSCOPE	POWER SUPPLY	L.C.R. METER	LOGIC ANALYZER	MULTIMETER
Consumer Electronics fields	SENSORS BOARD	DRIVER BOARD	USB DVIVER BOARD	BAR-CODE PRINTER	MP3 PLAYER
Consumer Electronics fields	SOLAR PANEL MODULE	PEN TABLET	USB HUB	USB CARD READER	USB FLASH DRIVE

Get a quote from Fortunemount for your custom (OEM ) product inquiry

In order to estimate an accurate quotation, the list below represents the minimum information we need from you.

The Complete Data of the Gerber Files for the Bare PC Board
Electronic Bill of Material/ Parts list detailing manufacturer's part numbers, quantity used and component references.
Please state whether we can use alternative parts for passive components
Assembly Drawing(s)
Functional Test Time Per Board
Quality Standards Required
Sample (if possible)
Volume Requirements
Date the quotation needs to be submitted

Welcome the small order.
E-mail us to find out how we can fill your requirements
