Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

Single Sided Flexible PCB Board

Single Sided Flexible PCB Board
Single Sided Flexible PCB Board

Large Image :  Single Sided Flexible PCB Board

Product Details:

Place of Origin: Single Sided Flexible PCB Board
Brand Name: Single Sided Flexible PCB Board
Certification: ROHS, UL, ISO9001-2000, ISO14001
Model Number: Single Sided Flexible PCB Board

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: FOB US $0.05 - 0.21 / Piece
Packaging Details: - Inner packing: Vacuum packing / Plastic bag - Outer packing: Standard carton packing
Delivery Time: Depends on your quantity
Payment Terms: T/T ; Western Union ; Paypal
Supply Ability: 40,000 Square Meter/Square Meters / Month
Detailed Product Description

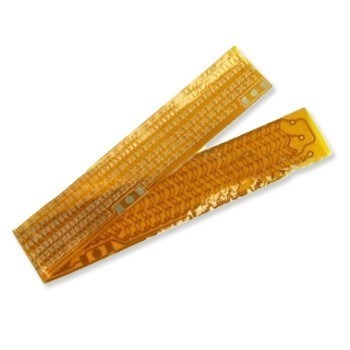

Single Sided Flexible PCB Board



Single sided flexible pcb is the most simple type of FPC. It has only one side, no wires can cross and they have to be routed around each other.



As the features of light weight, thin, soft, flexible, the single layer PCB board is mainly used in mobile phone, notebook computer, PDA, digital camera, LCD screen and so on.


Check this PCB with PI material, 0.8mm board thickness and more specifications are as follows.


Specifications



  • Number of Layers: single layer
  • Base Material: PI FLEX
  • Copper Thickness: 0.5 OZ to 7.0 OZ
  • Board Thickness: 0.8mm
  • Min. Hole Size: 3mil (0.075mm)
  • Min. Line Width: 3mil (0.075mm)
  • Min. Line Spacing: 3mil (0.075mm)
  • Surface Finishing: HASL Lead Free
  • Color: Yellow



Features



  • OEM service
  • Compliant with UL, ISO, TS16949 Directive
  • Widely used for mobile phones, printers, AV systems, automobiles, LCD displays, sensors and many more consumer electronics.



Single Sided Flexible PCB Board

The Relevant Product Parames



Product nameAluminumFR4CermicRogersHigh FrenquencyFR1, FR2CEM1, CEM3
Layer1L,2L 1L,2L2L2L or more1L1L
Base MaerialAluFR4CermicRogersFR4FR1, FR2CEM1, CEM3
Copper thickness0.5 OZ to 7.0 OZ0.5 OZ to 7.0 OZ0.5 OZ to 7.0 OZ0.5 OZ to 7.0 OZ0.5 OZ to 7.0 OZ0.5 OZ to 7.0 OZ0.5 OZ to 7.0 OZ
Min.Hole size0.1
Min.Line Width0.1
Solder masker colorGreen, red, black, white, yellow
Silkscreen colorBlack, white, yellow
