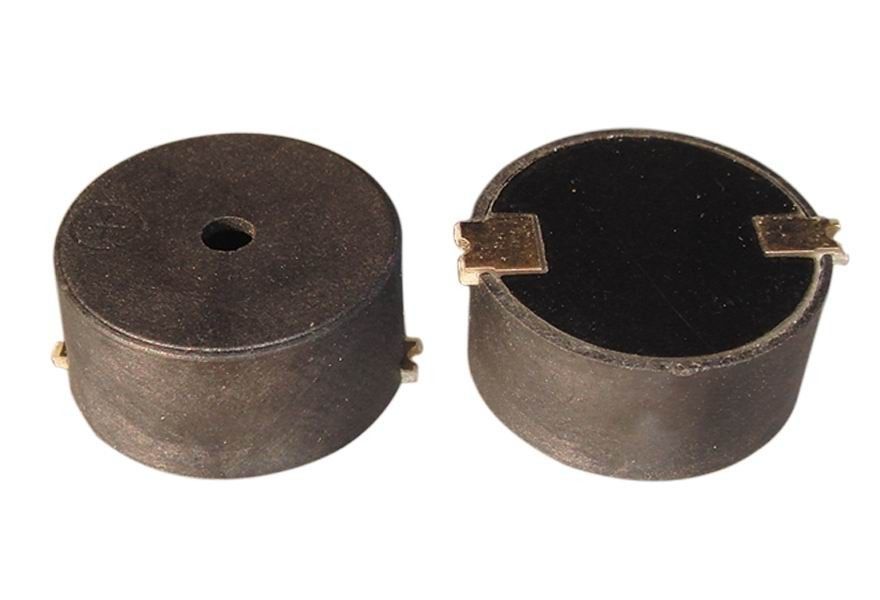

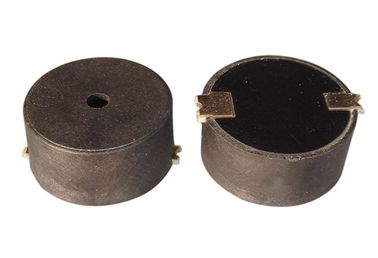

Small 6V SMD Piezo Buzzer Self Drive , Black Piezo Electric Transducer
Piezo Buzzer Quick Detail:
- Size: D:14mm*H6.5mm
- Rated Voltage: 6VDC
- Operating Voltage: 4-7VDC
- Rated Current: Max.10mA at 5VDC
- SPL: Min.80dB at 10cm Input 5VDC
- Resonant Frequency:4000+/-500Hz Continuous
Piezo Buzzer Description:
- buzzer
- SMD Electro-Magnetic Buzzer
- SMD Electro-Magnetic Element
- 6V Buzzer
1. Piezo Buzzer Technical Parameter
Measuring condition
Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.
|
1
|
Rated Voltage
|
6 VDC
|
|
2
|
Operating Voltage
|
3 – 7 VDC
|
|
3
|
Rated Current
|
Max.10mA, at 5VDC
|
|
4
|
Sound Output at 10cm
|
Min.80 dB, at 5VDC
|
|
5
|
Resonant Frequency
|
4000±500 Hz
|
|
6
|
Tone of Piezo Buzzer
|
Continuous
|
|
7
|
Operating Temperature
|
-20 - +70℃
|
|
8
|
Storage Temperature
|
-30 - +80℃
|
|
9
|
RoHS of Piezo Buzzer
|
Yes
|
|
10
|
Weight of Piezo Buzzer
|
Approx 1.0g
|
2. Piezo Buzzer Dimensions Unit: mm
*Housing Material: Black PPS
Piezo Buzzer Surface mounting condition
(1)Piezo Buzzer Reflow soldering
Recommendable reflow soldering condition is as follows.
Piezo Buzzer Note:
- In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
- In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.
(2)Piezo Buzzer Soldering pattern
Piezo Buzzer Reliability Test
After any following tests the part shall meet specifications without any degradation in
appearance and performance except SPL. SPL shall not deviate more than -10 dB
from the initial value
(1)Piezo Buzzer Ordinary Temperature Life Test
The part shall be subjected to 96 hours at 25±10℃. Input rated voltage
Resonant frequency, 1/2 duty Square wave.
(2)Piezo Buzzer High Temperature Test
The part shall be capable of with standing a storage temperature of +80℃ for 96 hours.
(3)Piezo Buzzer Low Temperature Test
The part shall be capable of with standing a storage temperature of -30℃ for 96 hours.
(4)Piezo Buzzer Humidity Test
Temperature:+40℃±3℃ Relative Humidity:90%～95% Duration: 48 hours
and expose to room temperature for 6 hours
(5)Piezo Buzzer Temperature Shock Test
Temperature:60℃ /1hour→ 25℃/3hours→-20℃/1hour→ 25℃/3hours (1cycle)
Total cycle: 10 cycles
(6)Piezo Buzzer Drop Test
Standard Packaging From 120cm(Drop on hard wood or board of 5cm thick,
three sides, six plain.)
(7)Piezo Buzzer Vibration Test
Vibration:1000cycles /min. Amplitude:1.5mm, Duration: 1 hour in each 3 axes
(8)Piezo Buzzer Reflow Test
Use recommendable reflow soldering condition (as shown in 5.1)
No abnormality should be found after reflow
Good soldering to meet soldering requirements
3.Piezo Buzzer Electrical And Acoustical Measuring Condition
Piezo Buzzer Recommended Setting
Piezo Buzzer Recommended Test Circuit
Piezo Buzzer Packing
Piezo Buzzer Application:
