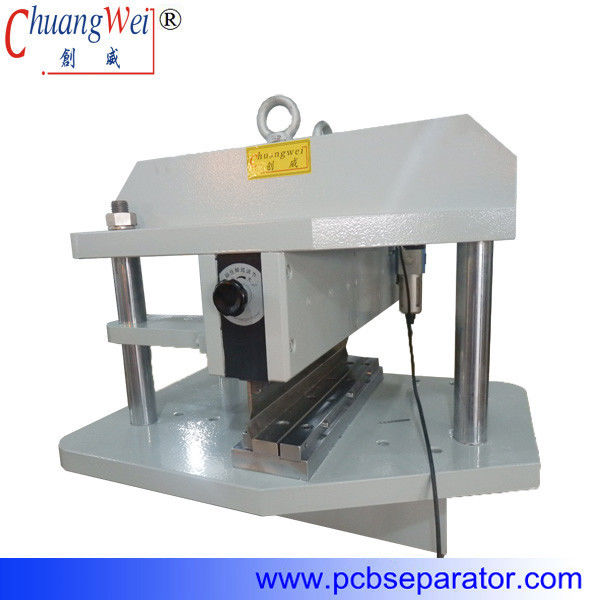

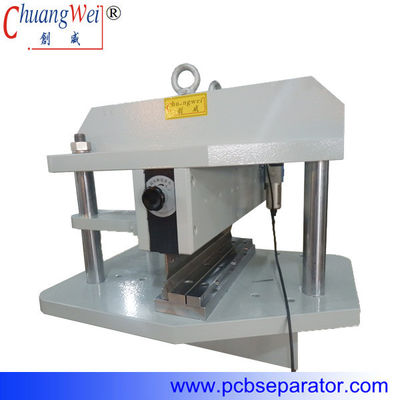

Steel Plates Cutting Aluminum And Copper PCB Board Shear Machine

Steel Plates Cutting Aluminum And Copper PCB Board Shear Machine
Steel Plates Cutting Aluminum And Copper PCB Board Shear Machine Steel Plates Cutting Aluminum And Copper PCB Board Shear Machine Steel Plates Cutting Aluminum And Copper PCB Board Shear Machine

Large Image :  Steel Plates Cutting Aluminum And Copper PCB Board Shear Machine

Product Details:

Place of Origin: Dongguan City, Guangdong province, China
Brand Name: ChuangWei
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: CWVC-450

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: seaworthy plywood case,safe, no need to fumigated
Delivery Time: within 7 days after receipt the payment.
Payment Terms: T/T ,L/C
Supply Ability: 1000 sets/year
Detailed Product Description
Blade: Linear Cutting Thickness: 0.3-3.5mm
Cutting Speed: Due To Operator Skill Level Warranty: One Year
Type: Pneumatic Certification: CE ISO
High Light:

pcb shear cutter

,

PCB Cutting Shear



 Pcb Separator With Two Linear Blades For 0.3-3.5mm PCB Aluminium CWVC-2L V-CUT PCB Separator Machine Features:


1. New style rigid machine structure design,shear any length rigid and thick metal board more safely and easily.
2. Shear long boards directly,without turning PCB direction.
3. Shear process without vibrations due to pneumatic drive unit.
4. Shearing PCB without bending and tension stress.
5. PCB control operation is that operator stamps the foot pedal to shear PCB.
6. Highest components near the v groove of PCB can be up to 50mm.
7. Gap for insertion of PCB can be easy to adjust.


V-CUT PCB Separator Machine:


1. Nice for shearing v cut metal board,Aluminium PCB,LED strip,Copper PCB etc.
2. Shear rigid and thick board fluently.
3. Use pneumatic-driven and electromagnetic valve to operate.


V-CUT PCB Separator Machine Specifications:



Model CWVC-450
Linear Blades length 450mm(Can custom made)
Material of blades high speed steel
Max.PCB shearing length unlimted
PCB shearing thickness 0.3-3.5mm
Voltage and Power 110V/220V  -- 10W
Working air pressure 0.5-0.7Mpa
PCB shearing speed due to operator skilled level
PCB  shearing machine size 900*760*750
PCB  shearing machine weight 475kg
