Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring



Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness

Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness
Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness

Large Image :  Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness

Product Details:

Place of Origin: China
Brand Name: YuSH
Certification: CE,ROHS, FCC
Model Number: YSVC-3S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: business negotiation
Packaging Details: Plywooden case
Delivery Time: 5-10 days
Payment Terms: Ex works . FOB
Supply Ability: 1000 sets /week
Detailed Product Description
Thickness: 0.6-3.0mm Blade Materia: SKH11 HSS
Speed: 300~500mm/s Voltage: 220V/50HZ,25W
Size Of Machine: 1200mm*506mm*333mm(L*W*H) Operating Temperature: 10-35 Deg
High Light:

PCB Scoring Machine

,

Circuit Board Cutter

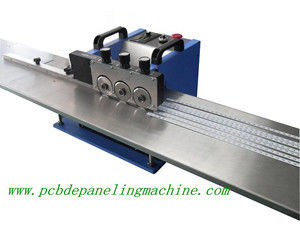

Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness (Model:YSVC-3S)





Features

1.  With unique cutting method , the circuit board is cut by six blades . It is a group composed of one upper and one lower blade , and is also a cutting unit. There are A, B, C, three groups. The whole cutting process is divided into three stages from group A blade which cut 40% board  then to the group B blade knife cut through groove cutting by group A  to complete another 40% .the last 20% is cut by group C blade and finishing. because each cutting volume is small, the stress produced during the cutting progress declined by more than 80% compared with the traditional cut off at a time.
Thus the edge of the board and  its surface are very smooth without warping . Currently, it is the only machine that can guarantee the aluminum plate without deformation after cutting .

2.  Because of the multiple cutting,  cutting process is very smooth and greatly improves the capability of position of V-CUT groove .
Even if with shallow slot V-CUT groove the board won t jump out of blade, avoiding adverse.


3.  Because cutting force of  the blade  is small. abd with high speed steel material which is imported from the Swedish. durability of  the blade greatly improved , and the lifetime can be one year or more when cutting the aluminum board.

4.  All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument. Ensure that the latter knife can accurately continue to cut in the slots which already cut by the former knife.The jitter of knife point  is less than 0.02mm. Ensure perfect cutting quality.


Specifications



Model YSVC-3S with 2.4M platform
Dimension 880*420*320mm(L*W*H)
Suitable PCB Length No limited
Cutting speed 300~500mm/s.
Cutting thickness 0.6-5.0mm
Minimum component distance from v-groove 1mm
Voltage 220 V/50HZ or 110V
Max component height 20 mm
Machine weight 52kg
Machine Warranty period One year



Demo exhibitions:

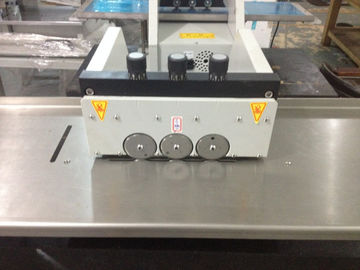

Three V Groove Cutting Machine PCB Depaneling Equipment 0.6mm-3.0mm Thickness
