Rigid PCB Board

  • High Precision Rigid PCB Board suppliers
  • High Precision Rigid PCB Board suppliers





Introduction


Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.

Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.




Material Types


FR-4, CEM-1,CEM-3, IMS, High TG,High Frequency, Halogen Free,Aluminum base, metal core base





Surface Treatment


HASL(LF), Flash gold, ENIG,OSP(Lead free compatible), Carbon ink,
Peelable S/M, Immersion Ag/Tin, Gold finger plating, ENIG+ Gold finger




Production Process



Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.

Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.

The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.




Application


LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.a

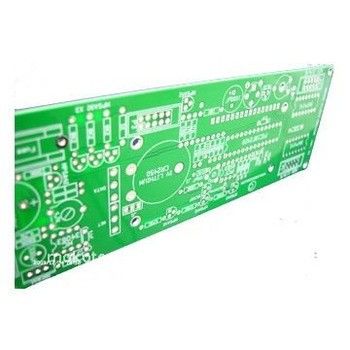

Through-hole Rigid PCB board with OSP

Through-hole Rigid PCB board with OSP
Through-hole Rigid PCB board with OSP

Large Image :  Through-hole Rigid PCB board with OSP

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: FR4 Copper Thickness: 1oz
Board Thickness: 1.6mm Min. Hole Size: 0.25mm
Min. Line Width: 0.1mm Min. Line Spacing: 0.1mm
Surface Finishing: Hasl Board Finished Thickness: 0.21mm-7.0mm FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,Rogers
Max.finished Board Size: 580*900mm) Min.drilled Hole Size 3mil(0.075mm) Min.Line Width: 3mil(0.075mm) Min.Line Spacing 3mil(0.075mm)
HASL/HASL Lead Free,HAL,Chemical Tin: Chemical Gold,Immersion Silver/Gold,OSP,Gold Plating. Copper Thickness In Hole: >25.0 Um(>1mil) Outer Packing Standard Carton Packing
Inner Packing: Vaccum Packing/Plastic Bag UL.ISO9001.ISO14001.SGS.ROHS Shape Tolerance: ±0.13 Hole Tolerance PTH ±0.076 NPTH ±0.05
High Light:

rigid printed circuit board

,

electronic circuit board

Through-hole Rigid PCB board with OSP



Specifications


rigid pcb board
PCB fabrication and pcba service
Electronic test and Turkey service
quick turn and lead time6-7days




rigid pcb board



· PCB board manufacture and PCBA service:

o PCB board file with parts list provided by customers

o PCB board made, circuit board parts purchased by us

o PCB board with parts assembled

o Electronic testing circuit board or PCBA

o Fast delivery, anti-static package

o RoHS Directive-compliant, lead-free

o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing,

PCB assembly, test, packing and PCB delivery

· Detailed terms for PCB assembly:

o Technical requirement:

§ Professional surface-mounting and through-hole soldering technology

§ Various sizes like 1206, 0805, 0603 components SMT technology

§ ICT (In Circuit Test), FCT (Functional Circuit Test) technology

§ PCB assembly with UL, CE, FCC, RoHS approval

§ Nitrogen gas reflow soldering technology for SMT

§ High standard SMT and solder assembly line

§ High density interconnected board placement technology capacity

o Quote requirement:

§ Gerber file and Bom list

§ Clear pics of pcba or pcba sample for us

§ Test method for PCBA
