Single Sided PCB

  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers
  • High Precision Single Sided PCB suppliers

Introduction:

Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.

Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.

Operating temperatures range from 130 C to 230 C.  Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).








Material:





Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.





Structure:



First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.





Production Process:


Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product




Application



Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit

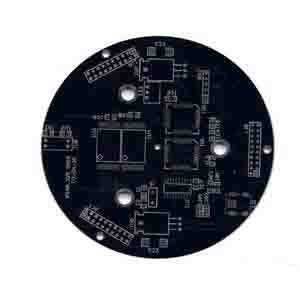

Rigid Single side pcb board 1 oz Copper , Min. Line 0.1mm , White Silkscreem

Rigid Single side pcb board 1 oz Copper , Min. Line 0.1mm , White Silkscreem
Rigid Single side pcb board 1 oz Copper , Min. Line 0.1mm , White Silkscreem

Large Image :  Rigid Single side pcb board 1 oz Copper , Min. Line 0.1mm , White Silkscreem

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: Alu Base Material Copper Thickness: 1oz
Board Thickness: 1.2mm Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm Min. Line Spacing: 0.1mm
Surface Finishing: HASL Color: Gray
Specification: Rigid Board Hole Size: 0.25mm
Silkscreem: White
High Light:

single sided board

,

single sided printed circuit boards

Rigid Single side pcb board 1 oz Copper , Min. Line 0.1mm , White Silkscreem



Specifications


1. pcb board
2.HASL surface finishing
3.short delivery time
4.small order are vailabe
5.OEM are provided






 1. We have many years experience professional PCB manufacturer.

2. Welcome your design, your logo can be printed in the PCB.

3. We offer MOQ and sampling service.

4. Our capacity can be 1200 square meter/square meters per month.

5. Sold makes types are according to your requirement (any color are available).



 Our PCB Vision



Be the most reliable PCB and PCBA service supplier.



Our PCB Mission



1.Dedicate to satisfy customers' needs.

2.Provide high quality products

3.Provide most professional services.

4.Deliver products on time.

5.Keep all costs to minimum and maximize our customers' benefits.



The PCB capability

We focus on high quality including quick turn PCB prototype , small volume, mid &Big volume PCB.



Capability:



          -High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

          -Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

           Halogen Free PCB, Aluminum-backed Boards

          -Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB



Our Product range


We offer a wide range of PCBs such as single-sided, double-sided, multi-layer, high frequency, MCPCB, metal-backed PCB and so on.



We can do for you:



1-16 layer FR-4 PCB board, 1-2 layer Aluminum PCB

1-6 oz copper thickness

0.2 mm hole size

0.1 mm line width/space



Our PCB are using for wide range of electronic products, such as project, amplifier, CCTV, power supply, GPS, Safety ,camera, set-top box, medical device, Telecommunication, LED light and so on.



3, How can we help you?
What we offer is better solutions to help you improve your quality while maintaining low production cost and be your longtime partner.



4, Can I ask you three questions?
(1)Do you have plans to import printed circuit board this year?
(2)If so, do you have plan to find an supplier in China?
(3)How can I Be a qualified supplier for you?



 If our PCBs can meet your requirements,welcome to receive your enquiry or trial order for testing our price and quality. We will quote to you the best price for your reference as soon as we receive your specific inquiry.



Manufacturer Capability


Material

FR-4 / Hi Tg FR-4 / Lead free Materials (RoHS Compliant) /CEM-3, Aluminium, Metal based

Layer No.

1-16

Finished Board thickness

0.2 mm-3.8mm  (8 mil-150 mil)



Board Thickness Tolerance

±10%

Cooper thickness

0.5 OZ-6OZ (18 um-210 um)

Copper Plating Hole

18-40 um

Impedance Control

±10%

Warp&Twist

0.70%

Peelable

0.012"(0.3mm)-0.02  (0.5mm)

Images

Min Trace Width (a)

0.075mm (3mil)

Min Space Width (b)

0.1mm (4 mil)

Min Annular Ring

0.1mm (4 mil)

SMD Pitch (a)

0.2 mm(8 mil)

BGA Pitch (b)

0.2 mm (8 mil)



0.05mm

Solder Mask

Min Solder Mask Dam (a)

0.0635 mm (2.5mil)

Soldermask Clearance (b)

0.1mm (4 mil)

Min SMT Pad spacing (c)

0.1mm (4 mil)

Solder Mask Thickness

0.0007"(0.018mm)

Holes

Min Hole size (CNC)

0.2 mm (8 mil)

Min Punch Hole Size

0.9 mm (35 mil)

Hole Size Tol (+/-)

PTH:±0.075mm;NPTH: ±0.05mm

Hole Position Tol

±0.075mm

Plating

HASL

2.5um

Lead free HASL

2.5um

Immersion Gold

Nickel  3-7um  Au:1-5u''

OSP

0.2-0.5um

Outline

Panel Outline Tol (+/-)

CNC: ±0.125mm, Punching: ±0.15mm

Beveling

30°45°

Gold Finger angle

15° 30° 45° 60°

Certificate

ROHS,  ISO9001,  CE,  UL certificate.





Product quality


Our factories got ISO9001, UL certificates and our products meet RoHS standards.

  • SGS:CANEC1000312001
  • UL:E320045
