HDI PCB Board

  • High Precision HDI PCB Board suppliers
  • High Precision HDI PCB Board suppliers





Material


FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180





Surface Treatment


HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger





Advantage



1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)





Capability:



          -High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards

          -Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,

Halogen Free PCB, Aluminum-backed Boards

          -Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB

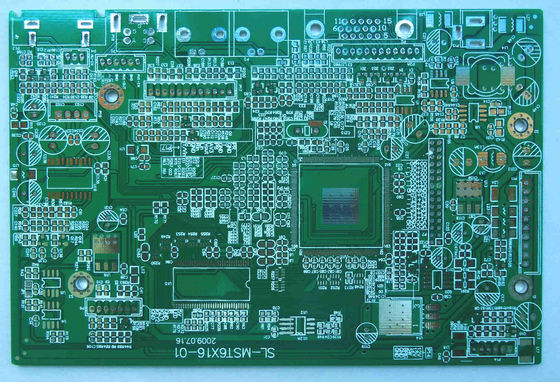

V-cut pcb depaneling machine , ENIG , HASL 8 layer HDI PCB Board 1.6 mm Board Thickness

V-cut pcb depaneling machine , ENIG , HASL 8 layer HDI PCB Board 1.6 mm Board Thickness
V-cut pcb depaneling machine , ENIG , HASL 8 layer HDI PCB Board 1.6 mm Board Thickness

Large Image :  V-cut pcb depaneling machine , ENIG , HASL 8 layer HDI PCB Board 1.6 mm Board Thickness

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Number Of Layers: 8-Layer Base Material: FR4
Copper Thickness: 1 OZ Board Thickness: 1.6 Mm
Min. Hole Size: 0.1 Mm Min. Line Width: 5 Mil
Min. Line Spacing: 5 Mil Surface Finishing: ENIG, HASL, LF, OSP
High Light:

high density board

,

hdi circuit boards

V-cut pcb depaneling machine , ENIG , HASL 8 layer HDI PCB Board 1.6 mm Board Thickness



Specifications


v-cut pcb depaneling machine
1.High quality circuit board
2.circuit board factoy
3.specil design




v-cut pcb depaneling machine,8 layer HDI Board



Detail:



(1)PCB and PCBA

(2)PCB Copy

(3)UL,ISO,RoHS,SGS

(4)PCB manufacturer

(5)Small order accepted

(6)high quality and resonable price



  • specialized in single-sided PCB, double-sided PCB, multilayer PCB and PCBA.
  • Material Type: FR4,CEM-1,non-halogen,Aluminium, high frequency,  94-V0, PI, High TG
  • Surface treatment: HASL, LF, Immersion Gold, Immersion Tin/ silver, Gold Finger, OSP



Specification:



  Item

  Capabilities

1.Base Material

FR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) /

Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/TACONIC

2.Layers

1-30

3.Finised inner/outer copper thickness

1-12OZ

4.Finished board thickness

0.2-7.0mm

Tolerance

Board thickness≤1.0mm: +/-0.1mm

1<Board thickness≤2.0mm: +/-10%

Board thickness>2.0mm: +/-8%

5.Max panel size

≤2sidesPCB: 600*1500mm

Multilayer PCB: 500*1200mm

6.Min conductor line width/spacing

Inner layers: ≥3/3mil

Outer layers: ≥3.5/3.5mil

7.Min hole size

Mechanical hole: 0.15mm

Laser hole: 0.1mm

Drilling precision: first drilling

First drilling: 1mil

Second drilling: 4mil

8.Warpage

Board thickness≤0.79mm: β≤1.0%

0.80≤Board thickness≤2.4mm: β≤0.7%

Board thickness≥2.5mm: β≤0.5%

9.Controlled Impedance

+/-5%

10. Aspect Ratio

15:1

11.Min welding ring

4mil

12.Min solder mask bridge

≥0.08mm

13.Plugging vias capability

0.2-0.8mm

14. Hole tolerance

PTH: +/-3mil

NPTH: +/-2mil

15.Outline profile

Rout/ V-cut/ Bridge/ Stamp hole

16.Surface treatment

OSP: 0.5-0.5um

HASL: 2-40um

Lead free HASL: 2-40um

ENIG: Au 1-10U’’

ENEPIG: PB 2-5U’’/ Au 1-8U’’

Immersion Tin:0.8-1.2um

Immersion silver: 0.1-1.2um

Peelable blue mask

Carbon ink

Gold plating: Au 1-150U’’

17. E-testing pass percent

97% pass for the first time,+/-2%(tolerance)

FQC-Physical Lab: Reliability tests

18.Certificate

ROHS  UL:E327776  ISO9001:2008  IPC  SGS

Our equipments

1.Drilling workshop

4 drilling bits of drilling machine: 4 sets

2 drilling bits of drilling machine: 2 sets

2. photo plotting workshop

Israel “ORBOTECH” Photo Plotters

3.AOI

AOI machine

4.IPQC

“OXFORD” CMI 700 Copper Thickness Tester

5.Impedance test

USA “Tektronix” DSA 8200 Impedance Tester

6.Outline workshop

CNC routing machine: 7 sets

angle-cutting machine

V-cut machine

7.Testing Workshop

Surpass X-600: 2sets

WTD FT-2808: 5sets

WTD HV300: 1set

8.X-ray

X-ray machine

Acceptable file format

GERBER file, PROTEL series, PADS series, POWER PCB series, AutoCAD series.
