Cell Phone PCB

  • High Precision Cell Phone PCB suppliers



Introduction


We can make single/double sided board, multi-layer board, high density board, including MLB with blind/buried via holes




Main Base Material


FR-1, FR-2, FR-4, CEM-1, CEM-3, High Frequency Laminate with various dielectric constant (imported or from local supplier), Aluminum base laminate, Metal core Aluminum
We choose the best base material suppliers as our partners, such as KB and Shengyi to guarantee our products with high quality.




Surface Finish


Hot air Lev p lead free HASL, immersion gold/silver/tin, plating gold, OSP




Board Thickness


Inner core thickness 0.15-1.5mm, finished board thickness 0.20-3mm





Service



*- Comprehensive documents audit to prevent mistakes in PCB Gerber and Bom.

*- Suggest best quality replacement with lower price.

*- Engineering support for test and provide suggestions for mass production.

*- Suggest best shipment method.

*- Sign NDA to keep your design safe.

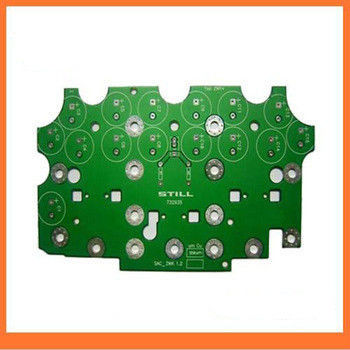

HASL / ENIG / OSP FR4 mobile / cell phone pcb circuit boards 1OZ Copper Thickness

HASL / ENIG / OSP FR4 mobile / cell phone pcb circuit boards 1OZ Copper Thickness
HASL / ENIG / OSP FR4 mobile / cell phone pcb circuit boards 1OZ Copper Thickness

Large Image :  HASL / ENIG / OSP FR4 mobile / cell phone pcb circuit boards 1OZ Copper Thickness

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Number Of Layers: 6-Layer Base Material: FR4
Copper Thickness: 1OZ Board Thickness: 1.6mm
Min. Hole Size: 0.2mm Min. Line Width: 0.1mm
Min. Line Spacing: 0.1mm Surface Finishing: HASL/ENIG/OSP
Solder Mask: Green/Blue/Black/White/Yellow/Red Etc Max Size Of Finish Board: 9200*900mm
Layer Count: 1~28
High Light:

cell phone circuit board

,

mobile phone pcb

HASL / ENIG / OSP FR4 mobile / cell phone pcb circuit boards 1OZ Copper Thickness



Specifications


FR4 cell phone circuit boards
1.FR4 material,multi-layer pcb
2.UL,SGS,ROHS,IS09001
3.X-ray&AOI Test




FR4 cell phone circuit boards



1.HASL/ENIG/OSP finish required to meet ROHS compliant;

2.FR4 material within 0.2mm-3.2mm boards thickness;

3.Copper weight:0.5OZ,1OZ,2OZ,3OZ;

4.0.2mm min finished hole size;

5.Certificate: UL, ROHS, T/S16949;
6.Company management: ISO9001:2000;
7.Markets: Europe, America, Asia etc all over the world.



PCB manufacturing capacity



NO

         Item

 Craft Capacity

1

Layer

1-28 Layers

2

Base Material for PCB

FR4, CEM-1, TACONIC, Aluminium, High Tg Material,

High Frequence ROGERS ,

TEFLON, ARLON, Halogen-free Material

3

Rang of finish baords Thickness

0.21-7.0mm

4

Max size of finish board

900MM*900MM

5

Minimum Linewidth

3mil (0.075mm)

6

Minimum Line space

3mil (0.075mm)

7

Min space between pad to pad

3mil (0.075mm)

8

Minimum hole diameter

0.10 mm

9

Min bonding pad diameter

10mil

10

Max proportion of drilling hole and board thickness

1:12.5

11

Minimum linewidth of Idents

4mil

12

Min Height of Idents

25mil

13

Finishing Treatment

HASL (Tin-Lead Free),  ENIG(Immersion Gold),

Immersion Silver , Gold Plating (Flash Gold),

OSP, etc.

14

Soldermask

Green, White, Red, Yellow, Black, Blue,

transparent photosensitive soldermask,

Strippable soldermask.

15

Minimun thickness of soldermask

10um

16

Color of silk-screen

White, Black, Yellow ect.

17

E-Testing

100% E-Testing (High Voltage Testing);

Flying Probe Testing

18

Other test

ImpedanceTesting,Resistance Testing,

Microsection etc.,

19

Date file format

GERBER FILE and DRILLING FILE,

PROTEL SERIES, PADS2000 SERIES,

Powerpcb SERIES, ODB++

20

Special technological requirement

Blind & Buried Vias and High Thickness copper

21

Thickness of Copper

0.5-14oz (18-490um)





PCB Superiority



1.High efficiency&Experience



We can provide one stop service.Established in 2001, with many years hard-working and constant innovation,we have



 grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development



 department and sophisticated quality control system.




2.Quality



Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether



 it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.





3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality



 contract and treat your important documentation as they would their own.





4.Service



We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'



 needs.We take time to listen to your unique business needs and then set out to surpass them.
