Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
Product Details:
Payment & Shipping Terms:
|
High Light: | two layer pcb,2 layer pcb |
---|

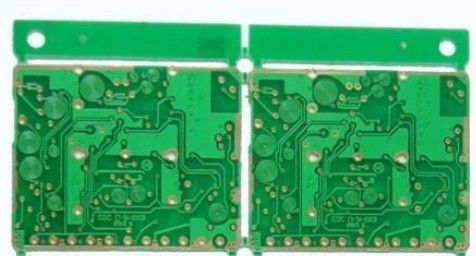

Custom single sided 2-layer / double layer pcb boards fr4 plating gold, 1/1OZ Copper
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
Detailed specification of PCB manufaturing capacity:
Surface processing type | HASL/ plating gold /immersion gold/ Ni/Au |
Layers | single-sided,double-sided,multilayer pcb board |
Min trace width | 6mil |
Min space width | 3.0mil |
Min trace to pad/pad to pad space | 6mil |
Min drill diameter | 0.2mm |
Min via pad | 0.6mm |
Max board size | Single and double sides:550mmX1100mm;multilayer:550mmX640mm |
Molding board thickness | 0.08-0.24mm |
Min solder mask dam | 6mil |
Min solder mask clearance | 1.5mil |
Min solder mask thickness | 10um |
Solder mask type | Green/yellow/black/red/white/blue or |
Min silk legend width | 6mil |
Min silk legend height | 25mil |
Silk legend color | White/ yellow /black |
Data file format | GERBER file and corresponding drilling file,PROTEL series,PADS2000,POWERPCB series,ODB++ |
Electricity performance testing | 100% electrical performance testing,high pressure testing |
Various types base material to PCB processing | High TG board, high frequency board(ROGERS,TEFLON) halogen-free board (FR-4,CEM-1,CEM-3) |
Other testing request | Impendence testing, Hole resistance testing, gold slice up, Solder ability. |
