Material Type:
FR4,non-halogen material ,Aluminum Base, Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
PCBs are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries.
FAQ
What are the available holes sizes?
14 mils to 150 mils - 1 mil increments
150 mils to 200 mils - 5 mil increments
above 200 mils - holes would be routed out
We only use drills in imperial units. Files submitted in metric units (mm) would be converted to imperial units (mils) and rounded up to the next mil.
I am used to designing in metric units while the website is specified in imperial units. Is there a conversion chart I can refer to ?
When requesting an online quote, the quote form can handle mm units as well as inches for dimensions.
How do I specify internal cutouts/milling in my design?
All internal cutouts/slots/milling should be specified on the same layer is the board outline. The the minimum routable slot size is 32 mils. During order time, please state this requirement in the "Special Request" section so that our CAM engineers is aware of it. This is not something we encounter often - so there are chances we may overlook it. Make sure it's known to us.
Product Details:
Payment & Shipping Terms:
|
| High Light: | prototyping pcb board,circuit board fabrication |
||
|---|---|---|---|

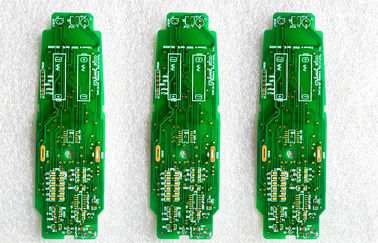

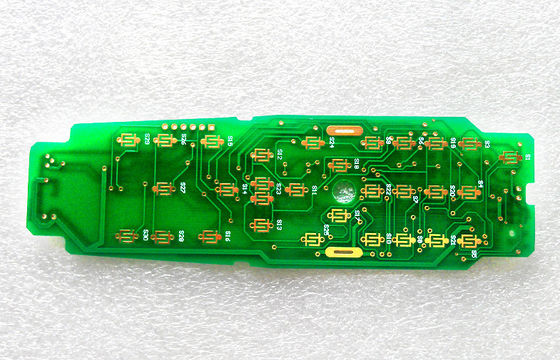

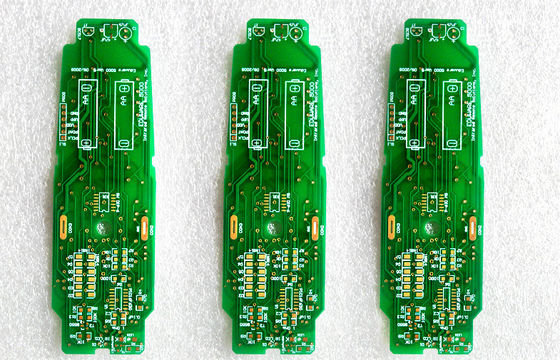

2 Layer 1 OZ 1.6mm Prototype PCB Boards Fabrication , HASL and Green Solder Mask
> Brand Name: East PCB
> web: www.eastpcb.com
> Material: FR4
> Layer Count: 2 layers
> Board Thickness: 1.6 mm
> Copper Thickness: 1OZ
> Surface Finish: HASL (RoHS)
> Solder Mask: Green(top&bot)
> Silkscreen: White screen (top&bot)
> Min drill/pad: 0.3mm/ 0.5mm
> Certification: UL, RoHS, ISO9001,
ISO14001, TS16949
Why choose us:
> Low cost PCB, you can save money on your prototype production.
> Fast PCB prototype, PCB boards arrive your door only 8-10 days.
> Prototype PCB, no min quantity required ,1pcs is OK!
> Tooling charge only once, conducive to repeat order PCB Manufacture.
> Quick Turn PCB, get detailed and exact quotation maybe only 1 hours.
> Keep all costs to min and max our customers' benefits!
Now get best PCB boards and Price from East PCB.
> Prototypes PCB builds, reduce your prototyping cost with our great quotation.
> Ready to production, no repeat tooling cost.
> Faster lead time, Best service.
> Quote now, get more cheaper price
Our Mission
> Do the best and most reliable PCB Manufacturing Company.
> Highly competitive prices with high quality PCB products.
> Keep all costs to min and max our customers' benefits!
> Be your China PCB Supplier, Be your China FRIEND.
