Double Sided PCB

  • High Precision Double Sided PCB suppliers
  • High Precision Double Sided PCB suppliers





Introduction


Double sided circuit board means has a double-sided copper, and metallized holes, that is double-sided copper, and copper are holes inside

Both sides have double wiring board, but to use the wire on both sides. Both sides must be in the room with appropriate electrical connections. "Bridge" between this circuit called vias. Guide hole in the PCB, metal filled or coated with holes, which can be connected to the conductors on both sides. Because dual-panel area twice as big than the single panel, double panel to solve the single-panel wiring staggered because of difficulty (can be turned to the other side of the hole), it is more suitable for use in more complex than single-panel circuit.





Advantages


Compared with single-board: wiring convenient, simple, labor-intensive wiring smaller, shorter line length.





Double Circuit Board Design Steps



     1. Prepare circuit schematics

     2. Create a new file and loaded PCB component package library

     3, planning board

     4, into the network table and components

     5, automatic layout components

     6, layout adjustment

     7, the network density analysis

     8, wiring rules set

     9, automatic routing

     10, manually adjust the wiring

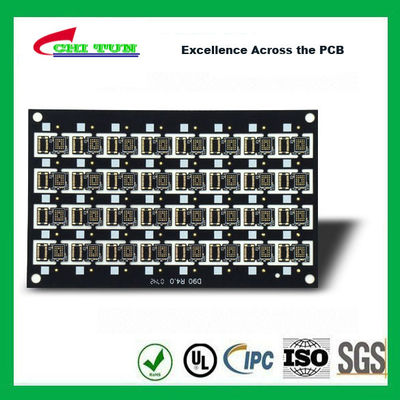

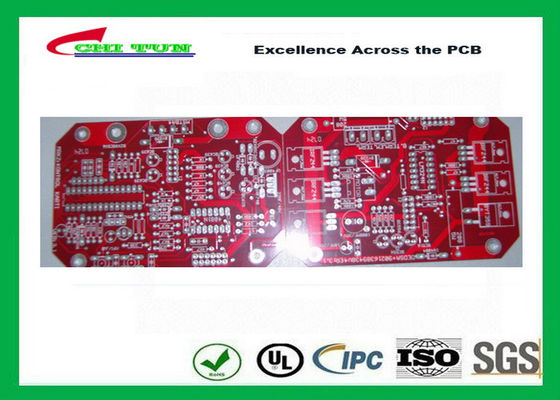

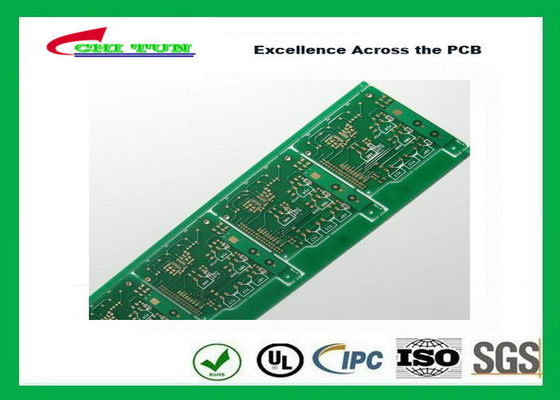

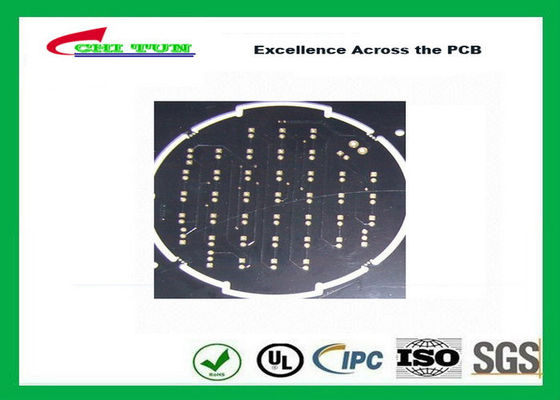

2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB

2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB
2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB 2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB 2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB 2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB

Large Image :  2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB

Product Details:

Place of Origin: China
Brand Name: ChiTunPCB
Certification: UL/ISO/ROHS/SGS
Model Number: base on customers' requestion

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: base on gerberfiles
Packaging Details: Vacuum package
Delivery Time: 8-15days
Payment Terms: TT, LC, Western Union, D/A,, D/P,and others base on negotiation
Supply Ability: 80000 Square Meters Per Month
Detailed Product Description
High Light:

double layer pcb

,

double side pcb

2 Sided PCB with Chen Ai/Ni , FR4 1.6mm Fiducial Marks and Tooling Holes PCB





Product Description

Model Number:

CTEL0210136

Number of Layer:

2Layer

Material:

FR4

Finish  Thickness:

1.6mm

copper:

35UM

PCB Size :

189.5*167.3mm

Line Width/line space

10/10mil

Min.Hole size :

0.4mm

Surface finish : Chem Gold


Green  solder mask



White sillkscreen



NO x-out allow



CNC

Place of Origin:

China

Brand Name:

CHITUN

Certification:

UL,ROHS,ISO

Standard:

IPC  standard





Application:

1. Audio and Video equipment: Input/output amplifier, balanced amplifiers, audio amplifiers, preamplifier, power amplifier

2. Communication electronic equipment: high-frequency amplifier, filter amplifier, transmitter circuit

3. Office automation equipment: motor drive, and so on.

4. Automotive: Electronic regulator, lighter, power controller

5. Computer: CPU board, floppy disk drive, power supply devices

6. Power Modules: converter, rectifier,UPS,bridge solid-state relay

7. Lighting lamps: LED Lights ect.
