Material
FR4 fiberglass panels, aluminum plate, copper substrate, iron substrate, PTFE, F4B, F4BM, Kangtai Li, CER-10, Rogers, FPC soft board and some other high-precision plate.
Crafts
Light copper, nickel, gold, tin spray; Immersion Gold, antioxidant, HASL, immersion tin, etc.
Double Layer PCB Leadfree HASL with blue solder mask
- Leadfree HASL Surface finish required to meet ROHS compliant
-FR-4 material with 0.25mm-6mm boards thickness
-Copper weight:1/3OZ,0.5OZ,1OZ,2OZ,3OZ,4OZ,5OZ,6OZ
-3-3mils min track width & spacing -0.2mm min finished hole size
-Certificate: UL,ISO14001,TS16949 and ROHS
-Company management: ISO9001
-Markets: Europe, America, Asia,etc.
Application
electronic products, like
computer peripherals,aerospace,telecommunication,automotives,medicaldevices,camermas,optoelectronic devices,VCD,LCD and verious other comsumer electronic products.
|
Product Details:
Payment & Shipping Terms:
|
| High Light: | Double Layer PCB,Lead-free HASL LED Red Sold Mask,LED PCB Board,Red Soldermask PCB Board for Mobile |
||
|---|---|---|---|

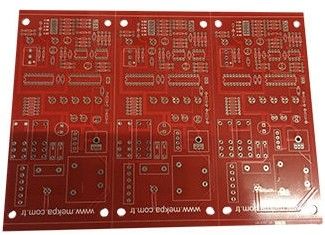

Double Layer PCB, Lead-free HASL LED Red Sold Mask:
Material: FR4
Layer count: 2
Minimum line space: 0.4mm
Board thickness: 1.6mm
Surface technique: HASL
Minimum hole size: 0.5mm
Solder mask: Red
Application field: industry control board
Other print: carbon print, peelable solder mask/solder maskplugged hole
Base materials: high temperature FR4, aluminum based, polyimide, royers, arlon and other Teflon
Layers: 1 to 26 layers standard PCB, blind via and buried via board
Minimum track space: 4 and 3 mil partial allowed
Maximum board thickness: 6mm
Finishes: HAL, lead-free HAL, organic OSP, hard and soft gold-plated tin, immersion silver, immersion tin and electro less nickel immersion gold
Shenzhen Meidearare with many years development we always committed to offer excellent one-stop service to our respected customers，
we welcome yourPCB,Aluminum PCB,FPC,Long PCB and CEM-3，Rigid and Flex PCB board RFQ,no matter the small or big quantity.
If you will firstly consider to choose ourShenzhen Meidearto be your partner,the Fast delivery、Good quality control、Competitive Price、Professional team and Personalized VIP servicewe offered will prove your wise choice.
For further information, pls feel free to contact us. You can also access to our website:www.me-pcb.com
Or you can send your enquiry tomkt at me-pcb.com
