Material
FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
Surface Treatment
HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Advantage
1.PCB factory directly
2.PCB high quality
3.PCB good price
4.PCB quick time
5.PCB certification(ISO/UL E354810/RoHS)
Capability:
-High Frequency (TACONIC material)/TG/Density/precision impedance controlled boards
-Heavy Copper PCB, Metal based PCB. Hard Gold PCB, Blind &Buried vias boards,
Halogen Free PCB, Aluminum-backed Boards
-Gold finger+ HAL & Leadfree HASL PCB, Leadfree compatible PCB
Product Details:
Payment & Shipping Terms:
|
High Light: | copper pc board,copper circuit board |
---|

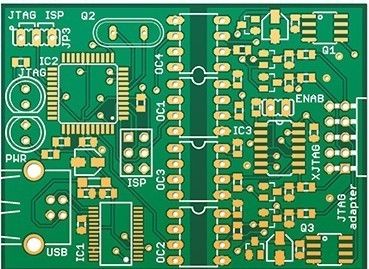

FR408 Isola HDI Tg 180 Copper PCB Board , 6-Layer PCB Solder Mask Green 2.0mm
Details:
1. One of the largest and professional PCB (Printed Circuit Board) manufacturers in China with over 500 staff and 20 years’experience.
2. All kinds of surface finish is accepted,such as ENIG,OSP.Immersion Silver, Immersion Tin, Immersion Gold, Lead-free HASL,HAL.
3. BGA,Blind&Buried Via and Impedance Control is accepted.
4. Advanced production equipment imported from Japan and Germany,such as PCB Lamination Machine, CNC drilling machine,Auto-PTH line,AOI(Automatic Optic Inspection),Probe Flying Machine and so on.
5. Certifications of ISO9001:2008,UL,CE,ROHS,REACH,HALOGEN-FREE is meet.
6. One of the professional SMT/BGA/DIP/PCB Assembly manufacturers in China with 20 years’experience.
7. High speed advanced SMT lines to reach chip +0.1mm on integrated circuit parts.
8. All kinds of integrated circuits is available,such as SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA.
9. Also available for 0201 chip placement, through-hole components insertion and finished products fabrication, testing and package.
10. SMD assembly and through-hole components insertion is accepted.
11. IC preprogramming is also accepted.
12. Available for Function verification and burn in testing.
13. Service for complete unit assembly,for example,plastics, metal box, coil, cable inside .
14. Environmental conformal coating to protect finished PCBA products.
15. Providing Engineering service as end of life components, obsolete component replace and design support for circuit, metal and plastic enclosure.
16. Functional testing,repairs and inspection of the sub-finished and finished goods.
17. High mixed with low volume order is welcomed.
18. Products before delivery should be full quality checked, striving to 100% perfect.
19. One-stop service of PCB and SMT(PCB assembly) is supplied to our customers.
20. Best service with punctual delivery is always provided for our customers.
PRODUCT’S DETAILS |
|
Raw Material |
FR-4(Tg 180) |
Layer Count |
6-Layer |
Board Thickness |
2.0mm |
Copper Thickness |
2.0oz |
Surface Finish |
ENIG |
Solder Mask |
Green |
Silkscreen |
White |
Min. Trace Width/Spacing |
0.075/0.075mm |
Min. Hole Size |
0.25mm |
Hole Wall Copper Thickness |
≥20μm |
Measurement |
300×400mm |
Packaging |
Inner: Vacuum-packed in soft plastic bales |
Application |
Communication,automobile,cell,computer,medical |
Advantage |
Competitive Price,Fast Delivery,OEM&ODM,Free Samples, |
Special Requirements |
Buried And Blind Via, Impedance Control, Via Plug, |
Certification |
UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE |
PRODUCTION CAPABILITY OF PCB |
||
|
ITEMS Item |
|
Laminate |
Type |
FR-1,FR-5,FR-4 High-Tg,ROGERS,ISOLA,ITEQ, |
Thickness |
0.2~3.2mm |
|
Production Type |
Layer Count |
2L-16L |
Surface Treatment |
HAL,Gold Plating,Immersion Gold,OSP, |
|
Cut Lamination |
Max. Working Panel size |
1000×1200mm |
Inner Layer |
Internal Core Thickness |
0.1~2.0mm |
Internal width/spacing |
Min: 4/4mil |
|
Internal Copper Thickness |
1.0~3.0oz |
|
Dimension |
Board Thickness Tolerance |
±10% |
Interlayer Alignment |
±3mil |
|
Drilling |
Manufacture Panel Size |
Max: 650×560mm |
Drilling Diameter |
≧0.25mm |
|
Hole Diameter Tolerance |
±0.05mm |
|
Hole Position Tolerance |
±0.076mm |
|
Min.Annular Ring |
0.05mm |
|
PTH+Panel Plating |
Hole Wall copper Thickness |
≧20um |
Uniformity |
≧90% |
|
Outer Layer |
Track Width |
Min: 0.08mm |
Track Spacing |
Min: 0.08mm |
|
Pattern Plating |
Finished Copper Thickness |
1oz~3oz |
EING/Flash Gold |
Nickel Thickness |
2.5um~5.0um |
Gold Thickness |
0.03~0.05um |
|
Solder Mask |
Thickness |
15~35um |
Solder Mask Bridge |
3mil |
|
Legend |
Line width/Line spacing |
6/6mil |
Gold Finger |
Nickel Thickness |
≧120u〞 |
Gold Thickness |
1~50u〞 |
|
Hot Air Level |
Tin Thickness |
100~300u〞 |
Routing |
Tolerance of Dimension |
±0.1mm |
Slot Size |
Min:0.4mm |
|
Cutter Diameter |
0.8~2.4mm |
|
Punching |
Outline Tolerance |
±0.1mm |
Slot Size |
Min:0.5mm |
|
V-CUT |
V-CUT Dimension |
Min:60mm |
Angle |
15°30°45° |
|
Remain Thickness Tolerance |
±0.1mm |
|
Beveling |
Beveling Dimension |
30~300mm |
Test |
Testing Voltage |
250V |
Max.Dimension |
540×400mm |
|
Impedance Control |
|
±10% |
Aspect Ration |
12:1 |
|
Laser Drilling Size |
4mil(0.1mm) |
|
Special Requirements |
Buried And Blind Via, Impedance Control, Via Plug, |
|
OEM&ODM Service |
Yes |
Contact Person: Miss. aaa
Tel: 86 755 8546321
Fax: 86-10-66557788-2345
