Introduction：
Focus on the most basic of PCB, components focused on one side, the other side of the wire is concentrated.Because wires only appear on one side, so this kind of PCB is called single sided PCB.
Single panel wiring diagram is given priority to with the network printing, that is, in the copper surface printed on resistance agent, to prevent welding resistance after etching printed on mark, and then punching processing way to complete the parts guide hole and the appearance.In addition, part of a small amount of diverse products, are using photosensitive resistance agent forming pattern of the photographic method.
Operating temperatures range from 130 C to 230 C. Single sided boards are available with surface finishes including Organic surface protectant (OSP), Immersion Silver, Tin, and Gold plating along with both leaded or lead-free Hot Air Solder Level (HASL).
Material：
Single sided PCB base material in paper phenolic copper paper laminated board, epoxy resin copper laminated plate is given priority to.
Structure：
First, the copper foil to be etched, etc. Process to obtain a circuit required, a protective film to be drilled to expose the corresponding pad. After cleaning and then rolling method to combine the two. Then the pad portion exposed gold plating or tin protection.
Production Process：
Single copper-clad plate - blanking - photochemical method/screen printing image transfer - remove corrosion was printed - cleaning, dry - hole machining - shape - dry cleaning - printing resistance welding coating - cure - printing mark symbol - cure - dry cleaning drying - pre coated flux - a finished product
Application
Single sided PCB most use in the radio, heating machine, cold storage, washing machines and other electrical appliances product, as well as the printer, vending machines, LED lighting, electronic components, such as commercial machine circuit
Product Details:
|
| High Light: | Flexible PCB Board,Flexible PCB Manufacturer |
||
|---|---|---|---|

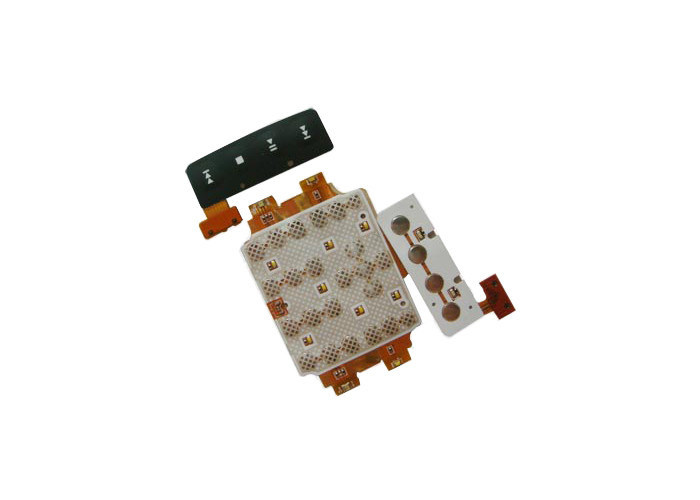

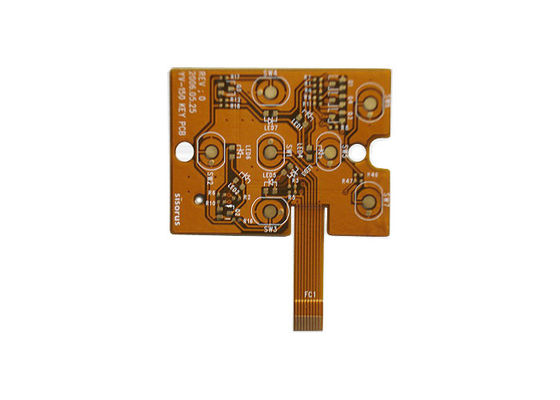

Printer Single Side PCB Flexible Printed Circuit Board / FPC Printed Circuit
Quik Details:
Description:
Flexible PCB boards, also Flex PCB, FPC printed circuit, was originally designed as a replacement for traditional wire harnesses. It is often used as connectors replace rigid printed circuit boards where high requirement on flexibility, space savings, or production constraints limit.
Advantage of Flexible PCB Boards:
Flexible PCB board Spec.:
Agile Circuit provides flexible PCB boards manufacturing service as well as rigid PCB board to meet our customer wide demand. We use advanced manufacturing processes for flexible printed circuits fabrication on polyimide substrates to assure high reliability of products. We specialize in single and double-sided circuits, also some multi-layer and Flexible Electronic Circuit assemblies, which is widely used in the customer electronics, medical device, communicating equipment, industrial equipment, and aerospace markets. Below is production spec. of flexible PCB:
|
Layers No. |
1-6 layers |
|
Finished Board Thickness |
Min.:10x45mm Max.:250x1200mm |
|
Available Laminates Material |
PI,PET,FR4+PI |
|
Finished Board Thickness tolerance |
±0.01mm |
|
Finished hole diameter(Min.) |
0.1mm |
|
Finished hole diameter(Max) |
0.6mm |
|
NPTH Hole diameter tolerance |
±0.025mm |
|
PTH hole diameter tolerance |
±0.050mm |
|
Copper foil thickness |
12um,18um,35um,70um |
|
Circuit width/spacing(Min.) |
≥0.065mm(1/2oz)≥0.05mm(1/3oz) |
|
Surface Finished type |
OSP, Gold plating, Immersion Gold, Tin plating, Pb/ Pbfree HASL |
|
Gold Flash Ni/Au thickness |
Ni:2.54-9um Au:0.025-0.5um |
|
Immersion Tin thickness |
0.7-1.2um |
|
Tin plating thickness |
3-15um |
|
Drill hole position tolerance |
±0.05mm |
|
Punching dimension tolerance |
±0.05mm |
|
Certificate |
ROHS,UL,ISO9001 |
Advantage:
1. We build flexible circuits to the exacting specifications of our customer
2. Our engineer and production staff is with many decades of experience in circuit board.
3. Competitive cost as well as high quality.
4. Excellent service and prompt delivery
5. ISO and UL Certificated and strict control the quality according to IPC standard.
Flexible PCB board Applications:
1) MP3, MP4 player, LCD monitors and LCD TV sets, Printer, LCD display
2) Optical reading and writing device, Antenna Board
3) Back light, Disk film, Antenna Board
4) Note book and digital cameras, Camera module group
5) Medical Equipment, Auto Meter, Printer, clamshell phone /flip phone
6) Oscilloscope/ oscillograph, Multimeter, electronic measuring instrument
7) CD, DVD, electronic Organ, plasma display Home Appliances
