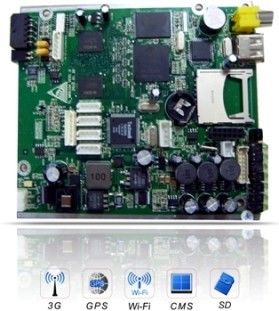

SMT SMD DIP OEM for PCBA Circuit Board, Double Layer Pcb Board Assembly For Insustiral Controller

Our services for the PCB Assembly

• Re-layout for shortening the board size
• Bare pc board fabrication
• SMT/BGA/DIP assembly
• Full component procurement or the substitute components sourcing
• Wire harness and cable assembly
• Metal parts, rubber parts and plastic parts including mold making
• Mechanical, case and rubber molding assembly
• Functional testing
• Repairs and inspection of the sub-finished / finished goods

Our capabilities for the PCB Assembly

Our capabilities for handling the Bare PC Board fabrication

Fabrication data inputs: Gerber data RS-274-X or RS-274-D with aperture list and drill files, design file with Protel, PAD2000, POWERPCB, ORCAD

Layers 2-30 L
Material Types Fr-4, Fr-5, High-Tg, Halogen Free, Rogers,
Isola, Taconic, Arlon, Teflon, Aluminum Based
Max. Panel Dimension 39000mil * 47000mil / 1000mm * 1200mm
Outline Tolerance ±4mil ±0.10mm
Board Thickness 8mil-236mil / 0.2mm-6.0mm
Board Thickness Tolerance ±10%
Dielectric Thickness 3mil-8mil / 0.075mm-0.20mm
Min. Track Width 3mil / 0.075mm
Min. Track Space 3mil / 0.075mm
External Cu Thickness HOZ-6OZ / 17um~210um
Internal Cu Thickness HOZ-6OZ / 17um~210um
Drilling Bit Size ( CNC ) 6mil-256mil / 0.15mm-6.50mm
Finished Hole Dimension 4mil-236mil / 0.1mm—6.0mm
Hole Tolerance ±2mil / ±0.05mm
Hole Position Tolerance ±2mil / ±0.05mm
Laser Drilling Hole Size 4mil / 0.1mm
Aspect Ration 12:1
Solder Mask Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge 2mil / 0.050mm
Plugged Hole Diameter 8mil-20mil / 0.20mm-0.50mm
Impedance Control V-scoring ±10%
Surface Finishing HASL, HASL(lead Free), Immersion Gold, Immersion Tin,
Immersion Silver, OSP, Hard Gold( up to 100u”)

• UL and TS16949: 2002 marks
• Special requirements: buried and blind vias, impedance control, via plug, BGA soldering and gold finger
• Profiling: punching, routing, V-cut and beveling
• OEM services to all sorts of printed circuit board assembly as well as electronic encased products are provided

Our manufacturing experience includes, but is not limited to:

Get a quote from Fortunemount for your custom (OEM ) product inquiry

In order to estimate an accurate quotation, the list below represents the minimum information we need from you.

• The Complete Data of the Gerber Files for the Bare PC Board
• Electronic Bill of Material/ Parts list detailing manufacturer's part numbers, quantity used and component references.
• Please state whether we can use alternative parts for passive components
• Assembly Drawing(s)
• Functional Test Time Per Board
• Quality Standards Required
• Sample (if possible)
• Volume Requirements
• Date the quotation needs to be submitted

Welcome the small order.
E-mail us to find out how we can fill your requirements
