Rigid flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application. The flexible substrates are designed to be in a constant state of flex and are usually formed into the flexed curve during manufacturing or installation.
Rigid flex designs are more challenging than the design of a typical rigid board environment, as these boards are designed in a 3D space, which also offers greater spatial efficiency. By being able to design in three dimensions rigid flex designers can twist, fold and roll the flexible board substrates to achieve their desired shape for the final application's package.
FR-4, CEM-1,CEM-3, IMS, High TG,High Frequency, Halogen Free,Aluminum base, metal core base
HASL(LF), Flash gold, ENIG,OSP(Lead free compatible), Carbon ink,
Peelable S/M, Immersion Ag/Tin, Gold finger plating, ENIG+ Gold finger
Whether producing a rigid flex prototype or production quantities requiring large scale rigid flex PCB fabrication and PCB assembly, the technology is well proven and reliable. The flex PCB portion is particularly good in overcoming space and weight issues with spatial degrees of freedom.
Careful consideration of flex-rigid solutions and a proper assessment of the available options at the early stages in the rigid flex PCB design phase will return significant benefits. It is critical the rigid flex PCB fabricator is involved early in the design process to ensure the design and fab portions are both in coordination and to account for final product variations.
The rigid flex manufacturing phase is also more complex and time consuming than rigid board fabrication. All the flexible components of the rigid flex assembly have completely different handling, etching and soldering processes than rigid FR4 boards.
LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect.a
Payment & Shipping Terms:
pcb design assembly,
electronic assembly services

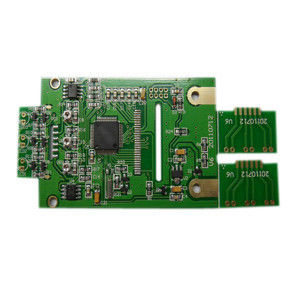

Fast PCB Board Assembly / Circuit Board Layout For Printed Circuitry
PCB assembly with SMT,BGA and DIP technology
We have our own tool workshop to provide timely and quality molding for plastic parts injection and tooling
Type of assembly
THD (Thru-hole device) / Conventional
SMT (Surface-mount technology)
SMT & THD mixed
Double-sided SMT and/or THD assembly
1 to 100,000
Passives, smallest size 0201
Fine pitch to 08 Mils
Leadless chip carriers/ BGA, VFBGA, FPGA & DFN
Connectors and terminals
Smallest size: 6mm x 6mm
Largest size: 600mm x 400mm
Leaded and Lead-Free
Water soluble solder paste
Manual soldering for special parts, e.g. wires and temperature sensitive parts.
Design file format
Gerber RS-274X, 274D, Eagle and AutoCAD’s DXF, DWG
BOM (Bill of Materials)
Pick and Place file (XYRS)
PCB Assembly Production Flow Chart
We perform multiple quality assurance procedures before shipping out any board. These include:
AOI (Automated Optical Inspector),
ICT (in-circuit test), and BGA Rework
Functional test (test modules need to be supplied) .
Quick turn lead times
If all the parts are available, normally the full turnkey pcb assembly job can be finished within 5 to 10 days in our factory. This means that the order can be delivered within three weeks once turnkey job start.
We make sure to serve each customer professionally, truthfully and friendly to the best of ourability. We will gladly re-work your project if your project isn’t 100% satisfactory.
Get a quick quote now
By sending in a bill of material, gerber files including assembly drawing and we will have a quotation back to you within hours. With Shenzhen hengda there is never a hidden cost and our prices are very competitive and reasonable.
