Flexible PCB Board

  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers
  • High Precision Flexible PCB Board suppliers





Introduction:



Flex PCBs, also known as flexible printed circuits or flexible electronics, provide greater options for designers and engineers when assembling electronic circuits.

They are constructed from flexible, high-performance plastic material, usually polyimide, which enables the board to bend or "flex" during use. This flexibility opens them up to use in a wide range of applications.

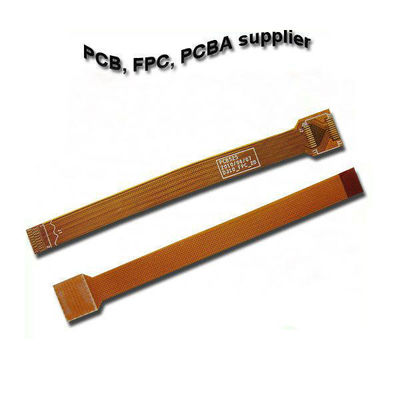

2-layer / 6-Layer printed circuit board flexible pcb board Polyimide , FR4 base

2-layer / 6-Layer printed circuit board flexible pcb board Polyimide , FR4 base
2-layer / 6-Layer printed circuit board flexible pcb board Polyimide , FR4 base

Large Image :  2-layer / 6-Layer printed circuit board flexible pcb board Polyimide , FR4 base

Product Details:

Place of Origin: shen zhen ,china
Brand Name: WonDa
Certification: CE, ROHS, UL

Payment & Shipping Terms:

Minimum Order Quantity: None
Price: Negotiable
Packaging Details: Vacuum bag + Outer carton
Delivery Time: 5-15 days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000 Sq.meter/month
Detailed Product Description
Base Material: Polyimide,FR4 Copper Thickness: 1OZ
Board Thickness: 0.22mm Min. Hole Size: 0.2mm
Min. Line Width: 0.1mm Min. Line Spacing: 0.1mm
Surface Finishing: Immersion Gold Certificate: UL, RoHS, SGS, ISO9001
Number Of Layers: 2-layer,6-Layer Key Words: Flexible Pcb
High Light:

flexible printed circuit board

,

flex pcb board

2-layer / 6-Layer printed circuit board flexible pcb board Polyimide , FR4 base



Specifications


Flexible Circuit
1) Material: Polyimide
2) Certificate: UL, ISO, SGS
3) Western Union, T/T,Paypal
4) Best price




Shenzhen printed circuit board flexible pcb board



Min. Order: 1 Piece

1.High Quality FPC
2.Resonable Price FPC
3.Fast Lead Time FPC

2-layer / 6-Layer printed circuit board flexible pcb board Polyimide , FR4 base



Description

  Details specification

Layer No.

1~6 Layer

Finished board size

Min.:10*15mm   Max.:250*1200mm

Available laminates material

PI, PET, PI+FR4

Finished board thickness(Min.)

3mil(0.08mm)

Finished board thickness tolerance

±0.01mm

Finished hole diameters(Min.)

0.1mm

Finished hole diameters(Max.)

0.6mm

NPTH hole diameter tolerance

±0.025mm

PTH hole diameter tolerance

±0.05mm

Copper foil thickness

18um,35um,70um

Line width/spacing(Min.)

2mil(0.05mm)

Surface treatment

OSP, HASL, Electronic nickel gold,Chemical nickel gold,Lead-free HASL,immersion gold

Drill hole position tolerance

±0.05mm

Punching dimension tolerance

±0.05mm

Thermal shock resistance

260°C 10s

Certificate

ROHS/UL/ISO9001

Quote requirement

FPC Gerber file+surface treatment+copper thickness+quantity



Shipping Method:



1. By DHL, UPS, FedEx, TNT using clients account.

2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.

3. By EMS (Usually for Russia Clients), price is high.

4. By sea for mass quantity according to customer's requirement.

5. By customer's Forwarder



Special Service

1. 2 layers within 24 hours

2. 4 layers within 48 hours

3. 6 layers within 72 hours
